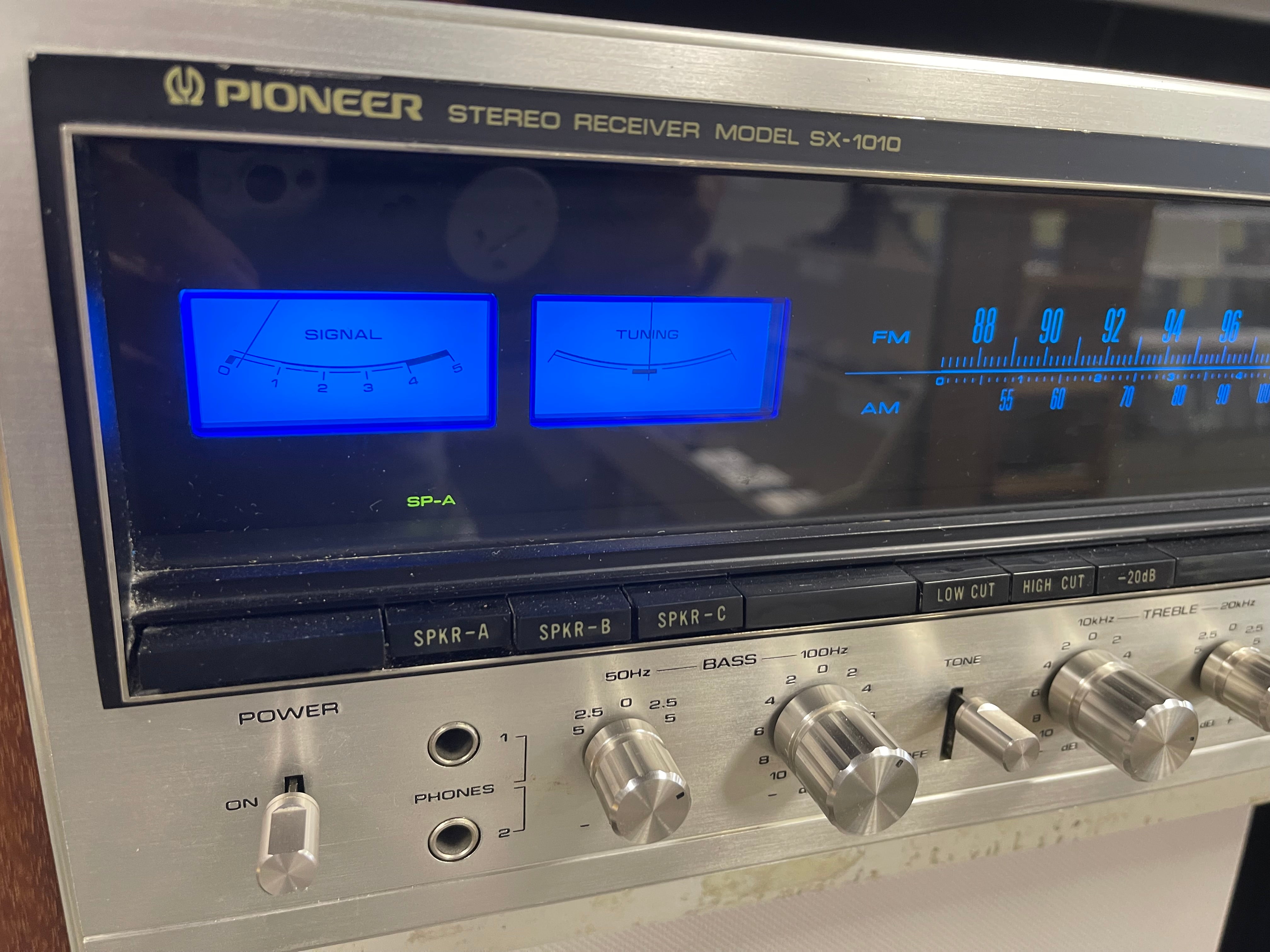

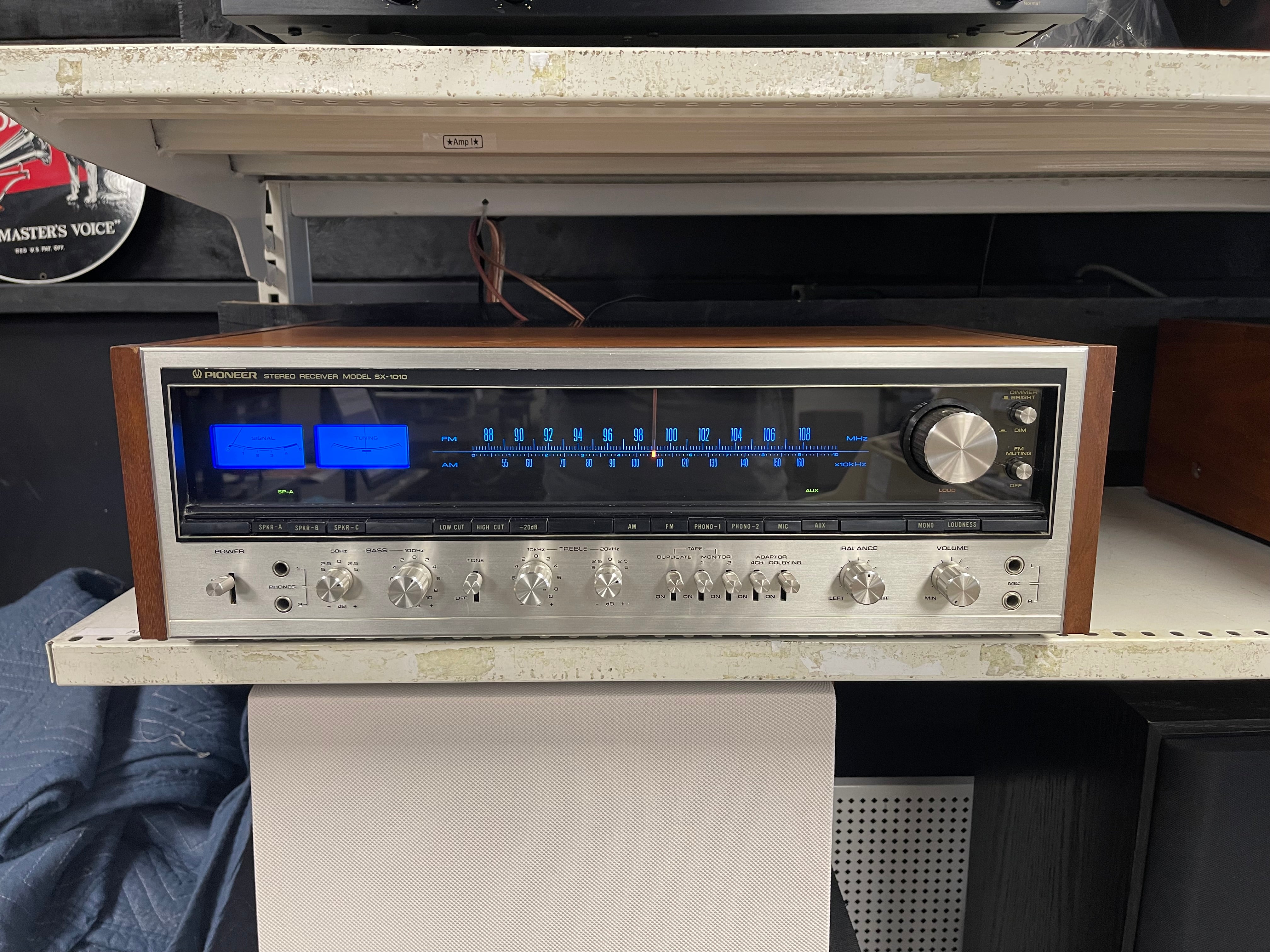

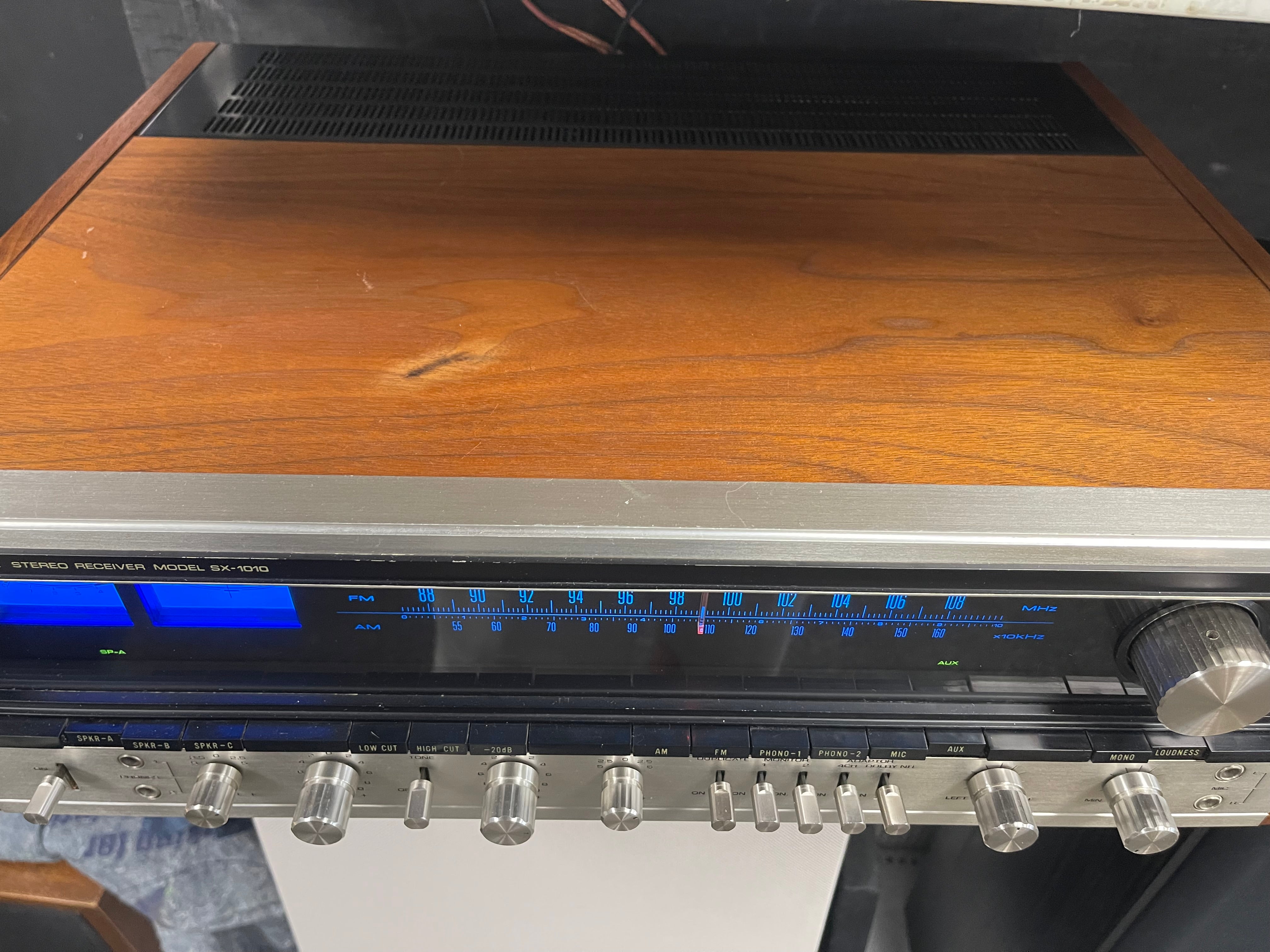

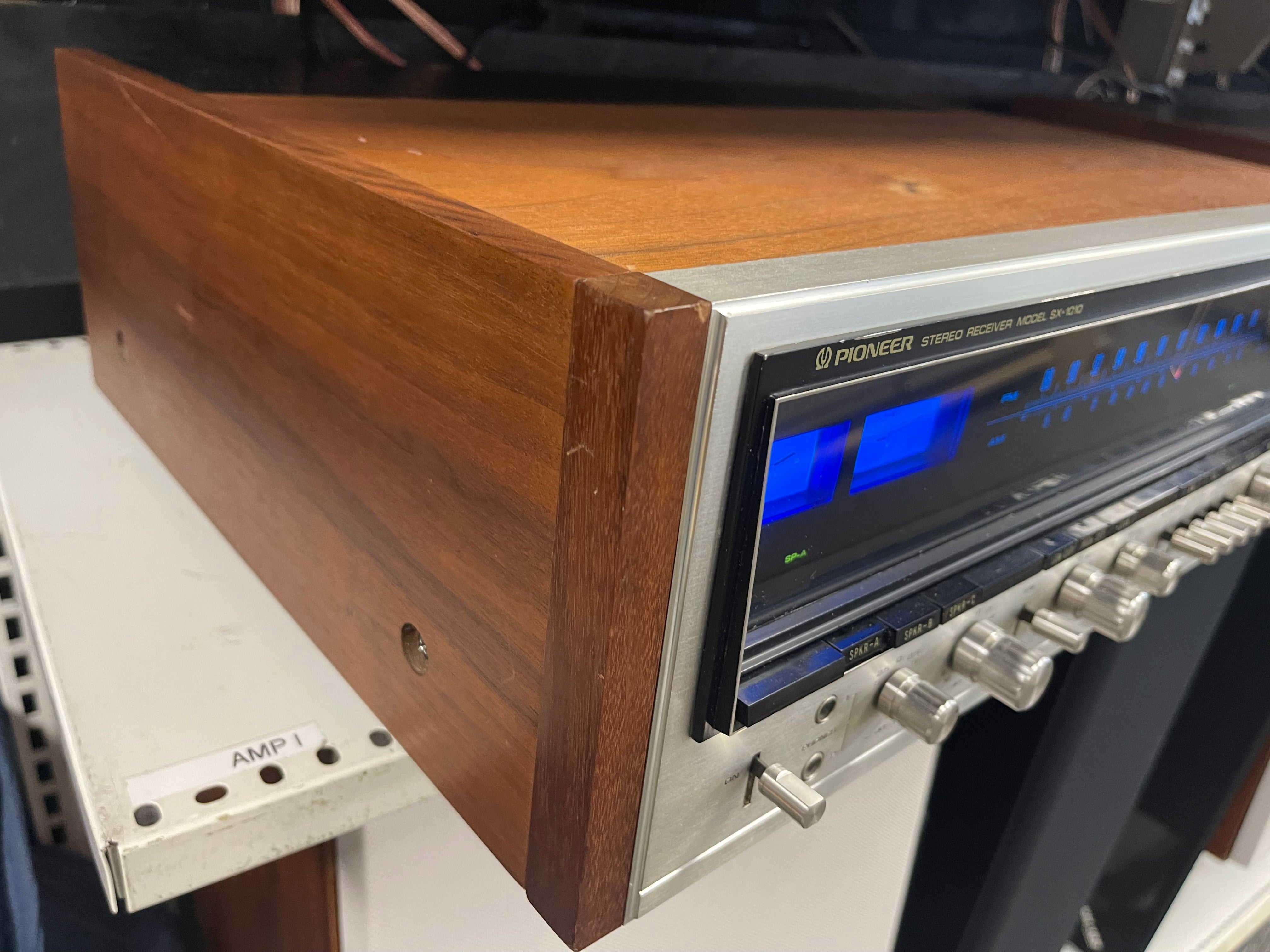

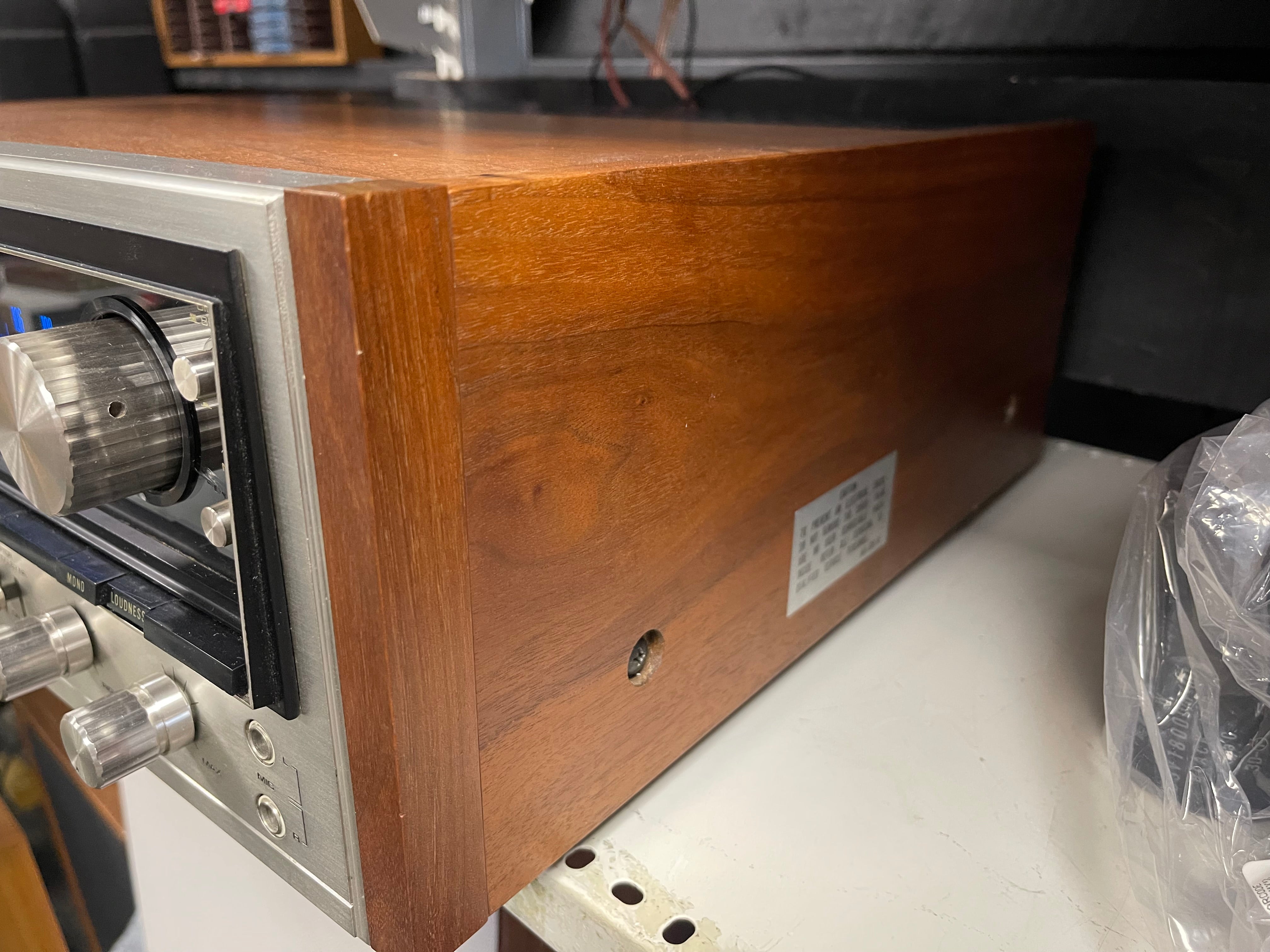

Pioneer SX-1010

Recapped and serviced by us!

Comes with a 30 day warranty!

Description

The SX-1010 is Pioneer's top of the line FM/MW stereo receiver.

Features include an FM front end with dual-gate FETs, ceramic filters and ics in IF stages for sharp selectivity, quadrature detection, phase lock loop (PLL) stereo demodulator, all IC equipped AM section with linear dial, balanced positive and negative power supply with heavy duty components, and a phono equalizer with wide dynamic range and extremely close tolerances.

The twin tone controls permit precise shaping of sound and direct-coupled power amplifier supplies high output power with minimum distortion.

Specifications

Tuning range: FM, MW

Power output: 100 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 40kHz

Total harmonic distortion: 0.1%

Damping factor: 30

Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line)

Output: 150mV (line), 30mV (DIN), 1V (Pre out)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 3 x FET, 5 x IC, 73 x transistors, 41 x diodes

Dimensions: 520 x 175 x 440mm

Weight: 22.2kg

Accessories: FM T-type antenna

Year: 1974
