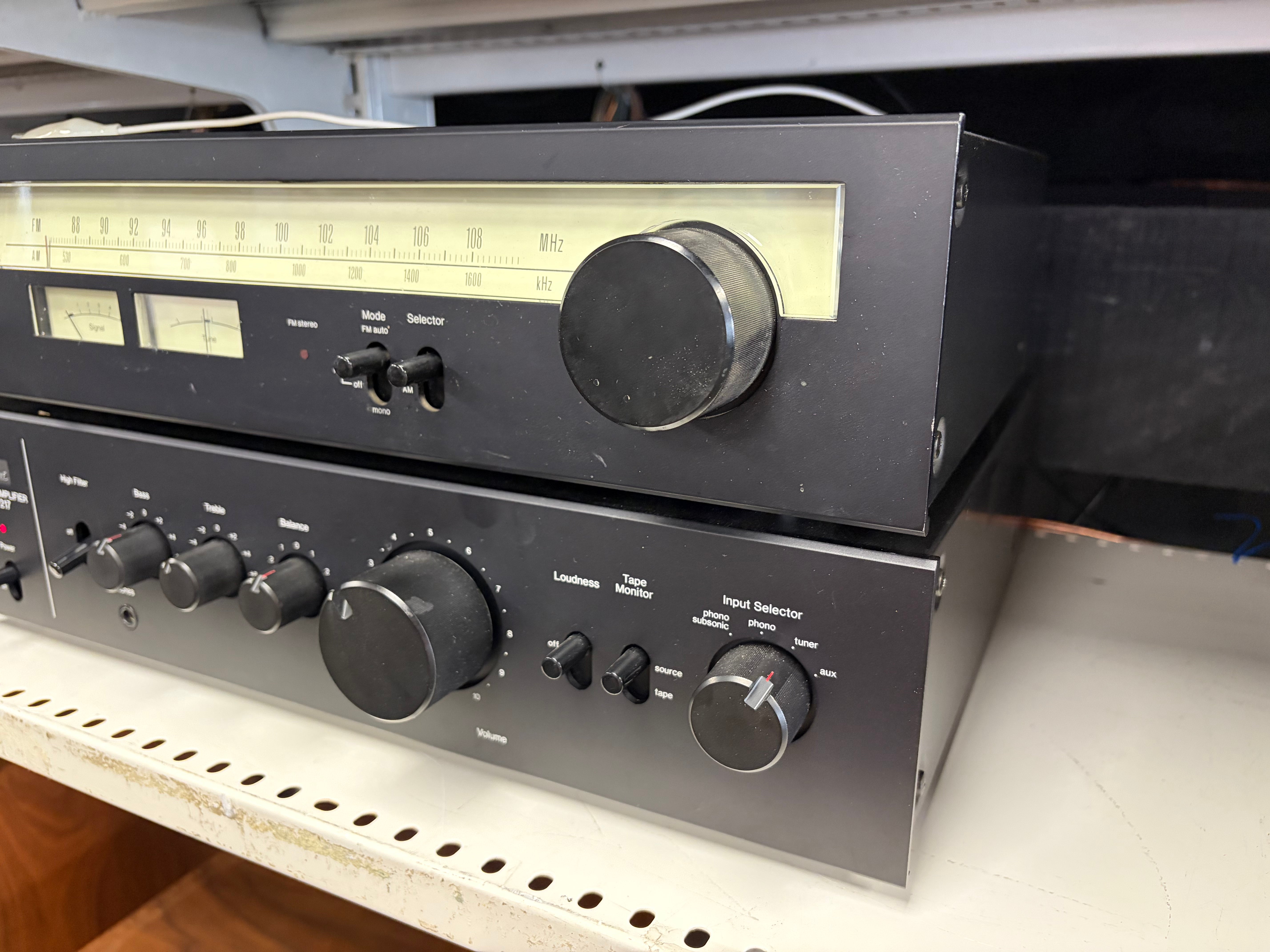

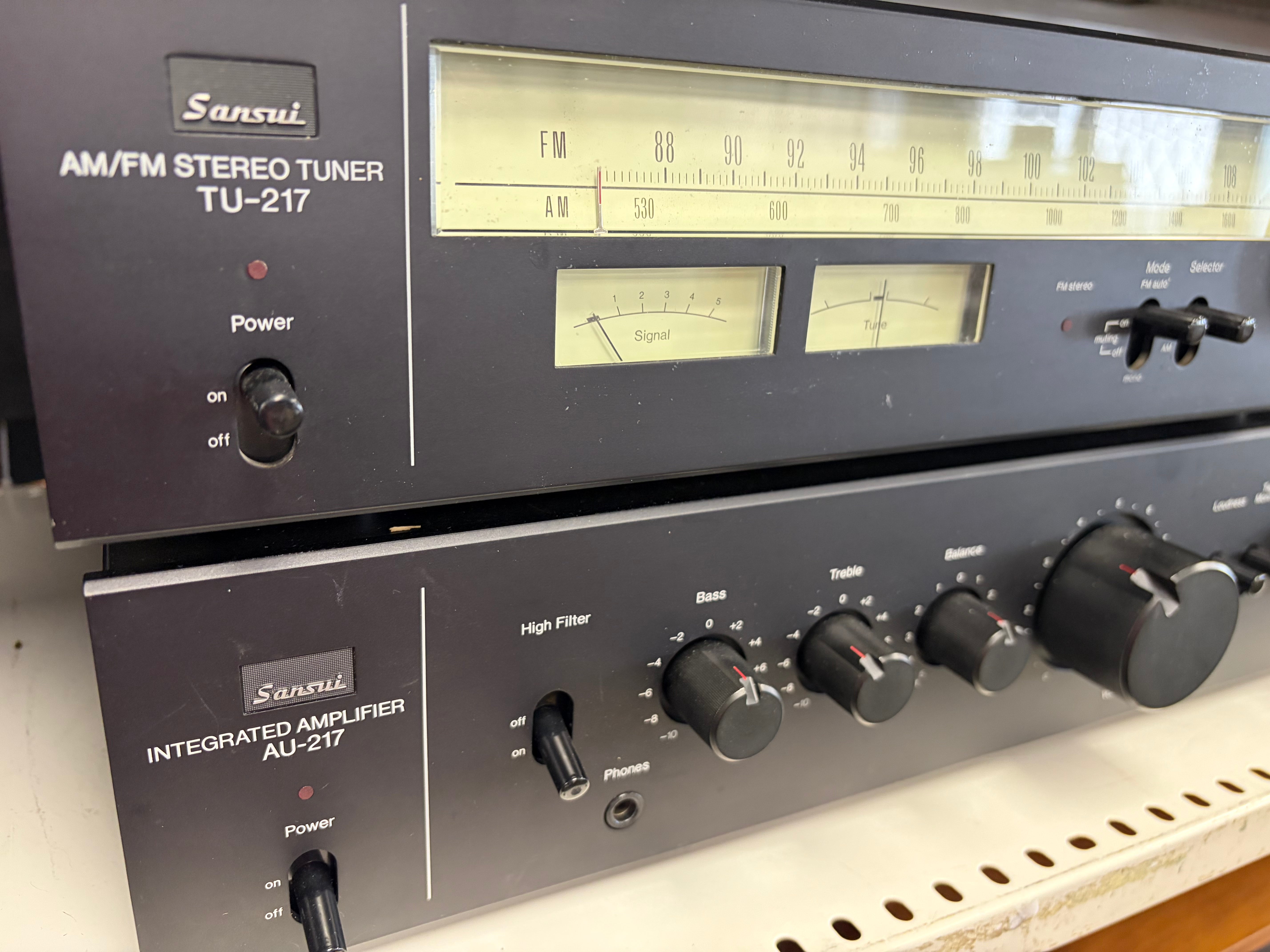

Sansui AU-217 Integrated Amp And TU-217 Tuner

Condition: This unit is being sold on consignment and has not been serviced by us. It has been tested for functionality with us and is confirmed to be in good working order. There is no warranty or returns on consignment items.

• AU -217 Specs

• Power output: 30 watts per channel into 8Ω (stereo)

  Frequency response: 10Hz to 50kHz

  Total harmonic distortion: 0.06%

  Damping factor: 80

  Input sensitivity: 2.5mV (MM), 150mV (line)

  Signal to noise ratio: 76dB (MM), 94dB (line)

  Channel separation: 65dB (MM), 68dB (line)

  Output: 150mV (line)

  Speaker load impedance: 8Ω (minimum)

  Semiconductors: 30 x transistors, 21 x diodes

  Dimensions: 430 x 110 x 340mm

  Weight: 8.4kg

  Year: 1978




•  TU-217 Specifications

  Type: Mono/Stereo Tuner

  Tuning Bands: FM, MW

  Tuning Scale: Analogue

  FM Tuning Range: 88 to 108 MHz

  MW Tuning Range: 530 to 1600 kHz

  Sensitivity: 1.85uV (FM), 220uV (MW)

  Signal to Noise Ratio: 75dB (FM), 48dB (MW)

  Distortion: 0.35% (FM), 0.4% (MW)

  Selectivity: 50dB (FM), 35dB (MW)

  Frequency response: 30Hz to 15kHz (FM)

  Output: 775mV

  Semiconductors: 8 x transistors, 6 x diodes, 1 x FET, 4 x IC

  Dimensions: 430 x 110 x 307mm

  Weight: 5.3kg
