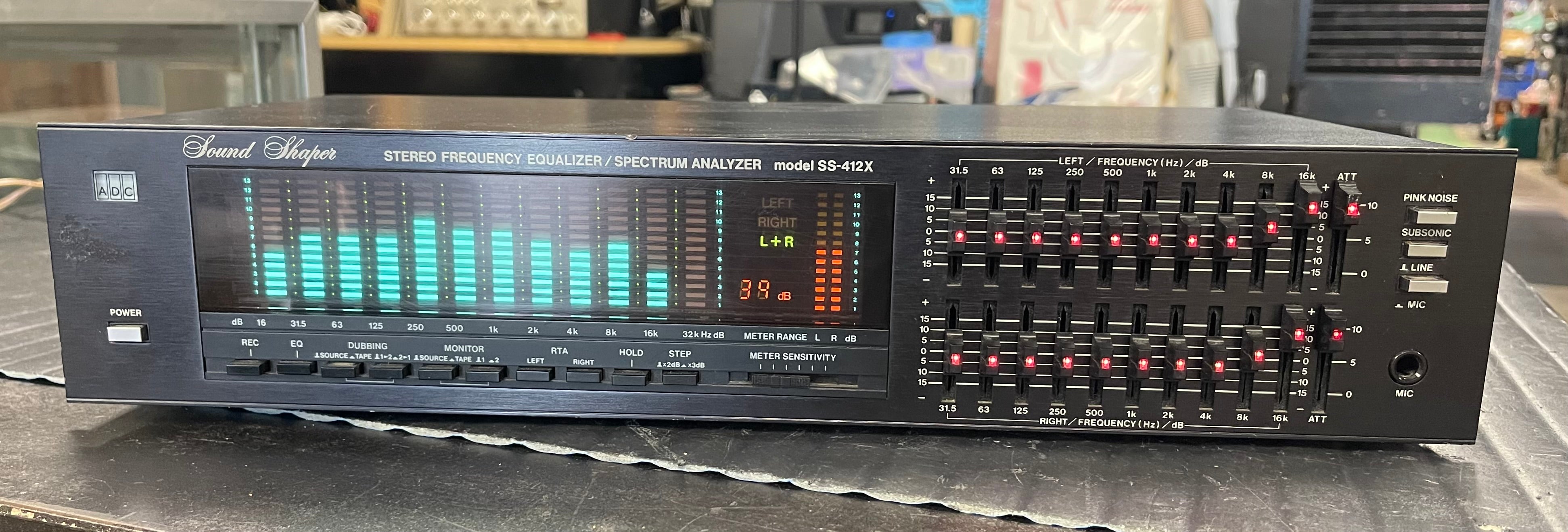

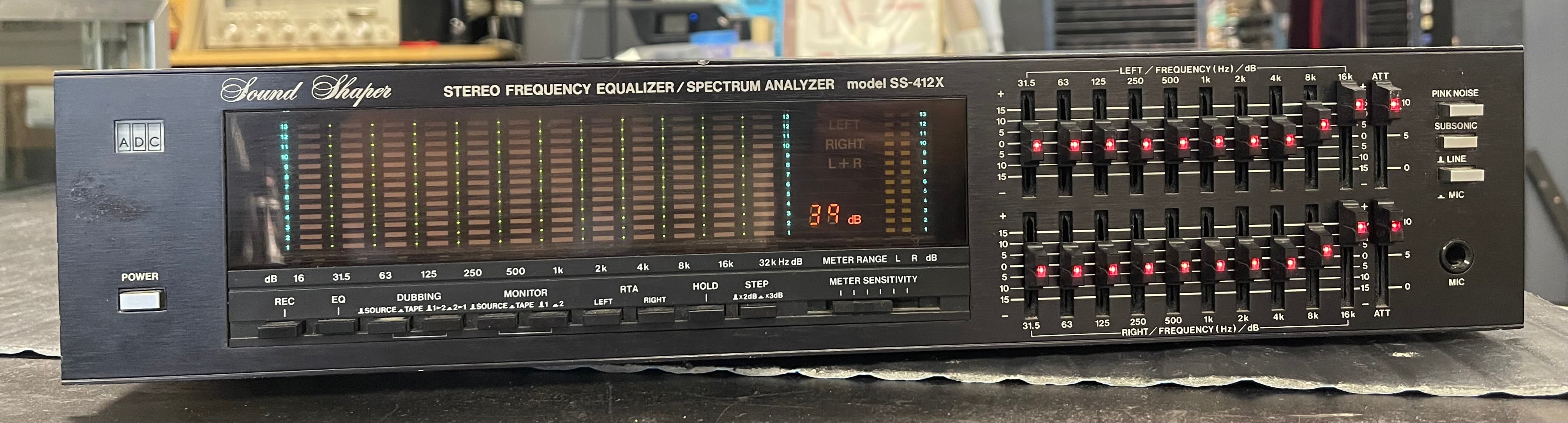

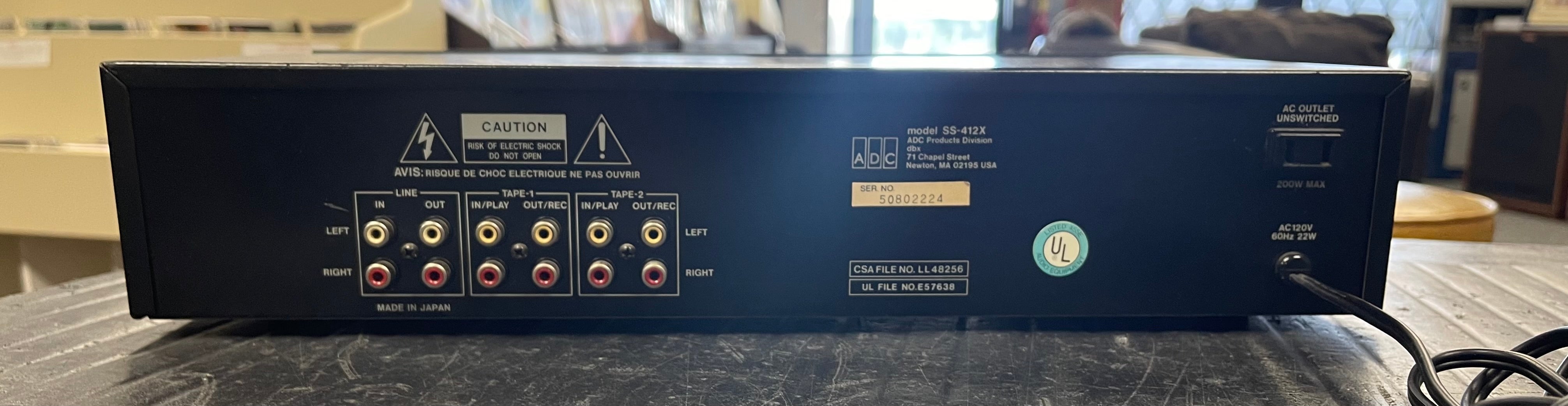

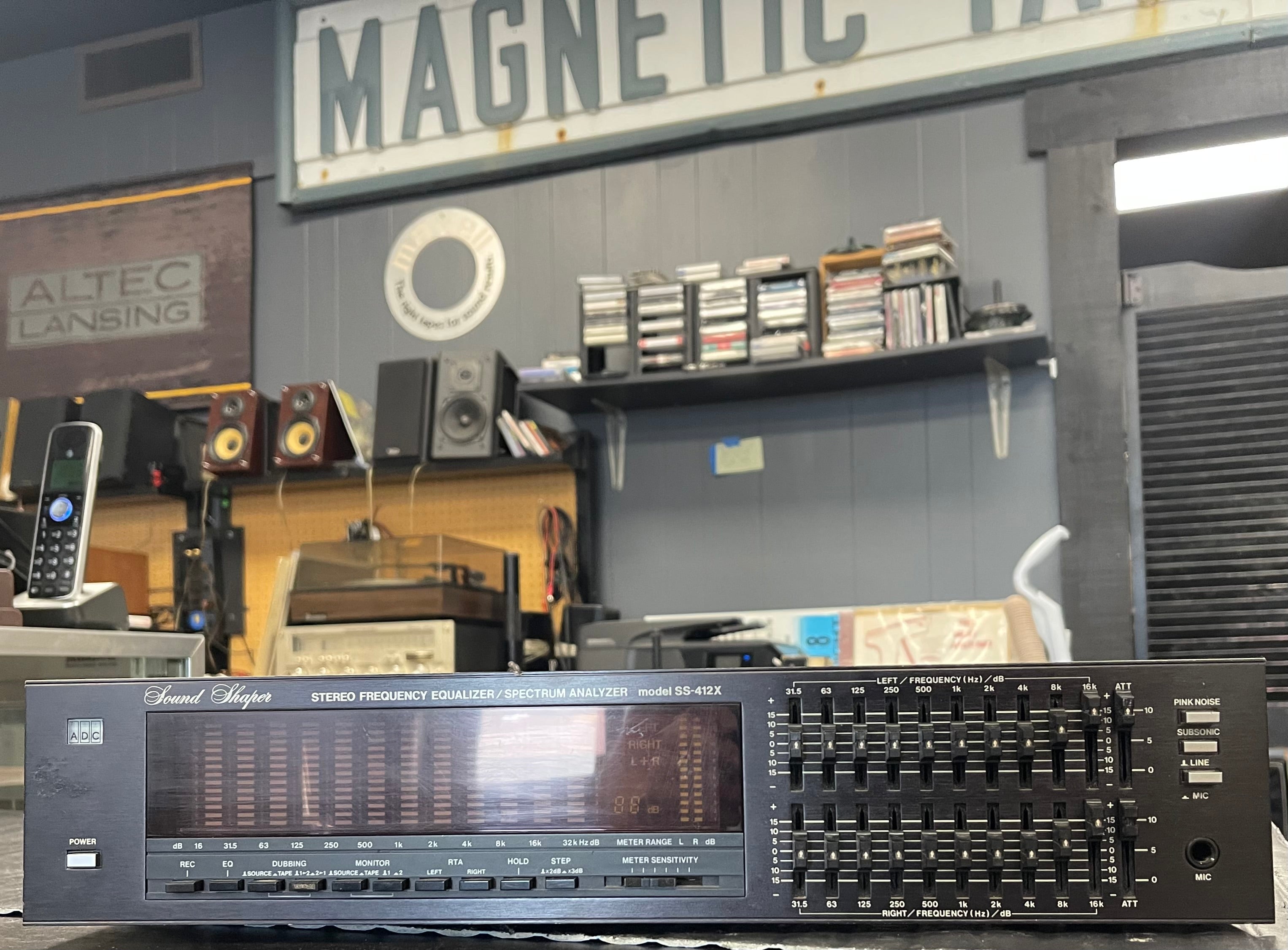

ADC Sound Shaper SS-412X Spectrum Analyzer EQ
Serviced By Us And Comes With A 30 Day Warranty.
Description
Audio Dynamics Corporation (ADC) is proud to provide the ultimate value in design and development of a 10 band graphic equalizer with a 12 band real time frequency spectrum analyzer, the Sound Shaper SS-412X for your superior sound analysis.
The SS-412X uses a fluorescent indicator tube which has 156 separate segments plus 26 segments average response indicator for display to analyze sound source frequencies and room acoustics.
Specifications
Input Sensitivity: 1V (5V max)
Output Level: 1V (5V max)
Gain: ± 1dB
Frequency response: 5Hz to 100kHz
Signal to Noise Ratio: 100dB
Total harmonic distortion: 0.008%
Control Range: ± 15dB
Frequency Bands: 31.5, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
Dimensions: 435 x 88 x 222mm
Weight: 4.8kg
