Audio-Technica
AT-LP120XUSB-BK Direct-Drive Turntable
AT-LP120XUSB-BK Direct-Drive Turntable
In stock
Couldn't load pickup availability
- Free Local Delivery
- Free Shipping
KEY FEATURES
• Direct-drive, DC servo motor
• Fully manual operation with adjustable dynamic anti-skate control
• Selectable 33/45/78 RPM speeds
• Anti-resonance, die-cast aluminum platter with felt mat

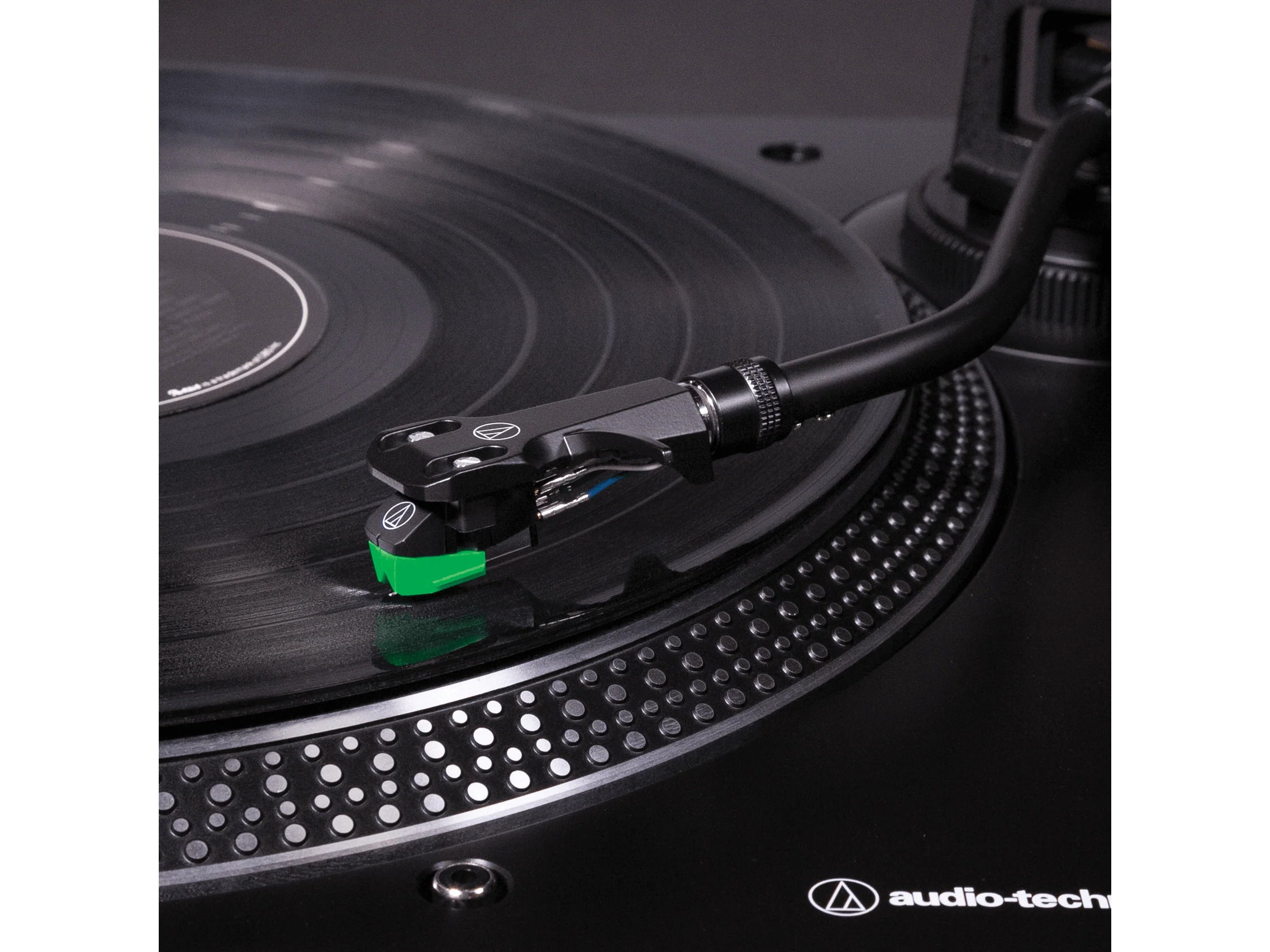

• Pre-mounted Audio-Technica AT-VM95E cartridge (upgradeable with any VM95 Series replacement stylus)
• Balanced S-shaped tonearm with hydraulically damped lift control
• Built-in switchable phono pre-amplifier
• Stroboscopic platter with speed indicator and variable pitch control
• Removable plug-type target light for low-light cueing
• Damped base construction for reduced feedback
• USB output for digital recording (software included)
• Removable cables and hinged dust cover
Technical specs
Technical specs
Type: 3-speed, fully manual operation
Motor: DC servo motor
Drive Method: Direct drive
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter: Die-cast aluminum
Starting Torque: >1.0 kgf.cm
Braking System: Electronic brake
Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio: >50 dB
Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max.
Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
Weight: 8 kg (17.6 lbs.), without dust cover

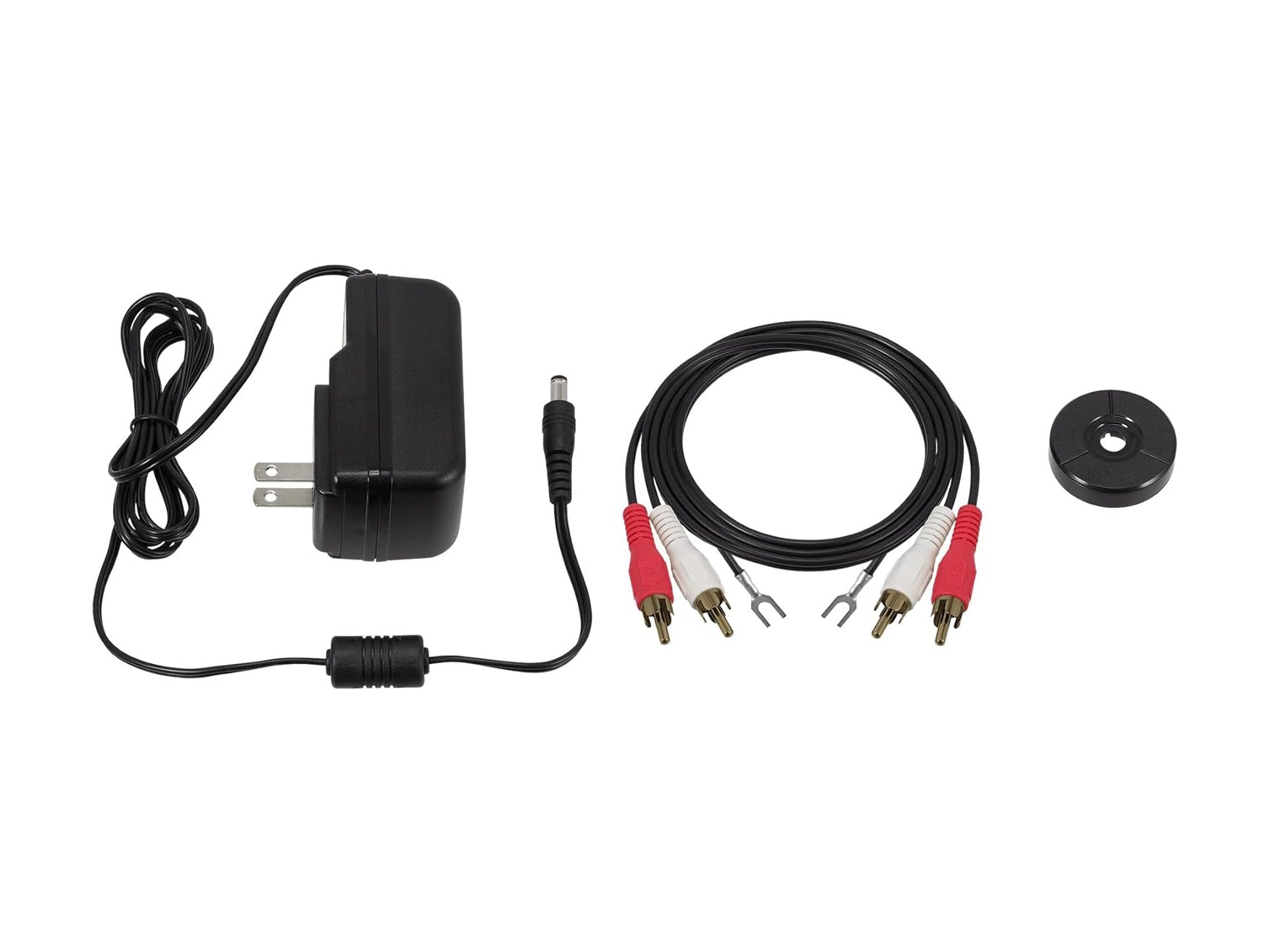

INCLUDED ACCESSORIES
INCLUDED ACCESSORIES
• USB Cable
• Detachable RCA Output Cable (Dual RCA Male To Dual RCA Male)
• AC Adapter
• 45 RPM Adapter
• Counterweight
• Felt Mat
• Removable Hinged Dust Cover
Share
![AT-LP120XUSB-BK Direct-Drive Turntable](http://magnetictaperecorder.com/cdn/shop/files/lp120.jpg?v=1702408697&width=1445)
![AT-LP120XUSB-BK Direct-Drive Turntable](http://magnetictaperecorder.com/cdn/shop/files/lp1202.jpg?v=1702408697&width=1445)
![AT-LP120XUSB-BK Direct-Drive Turntable](http://magnetictaperecorder.com/cdn/shop/files/lp1204.jpg?v=1702408697&width=1445)
![AT-LP120XUSB-BK Direct-Drive Turntable](http://magnetictaperecorder.com/cdn/shop/files/lp1203.jpg?v=1702408692&width=1445)
![](http://magnetictaperecorder.com/cdn/shop/files/banner.jpg?v=1719083587&width=3840)
From Audio-Technica
![](http://magnetictaperecorder.com/cdn/shop/files/top_view.jpg?v=1719083332&width=1500)
overview
AT-LP120XUSB
This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.
![](http://magnetictaperecorder.com/cdn/shop/files/ATLP120XUSBBK_7.png?v=1719083037&width=1500)
Analog or USB Connection
Next-Generation Analog/USB Turntable
An update of the critically acclaimed AT-LP120-USB, this turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier.
![](http://magnetictaperecorder.com/cdn/shop/files/AT-LP120XUSB_lifestyle_banner_tablet_02.webp?v=1719082221&width=1500)
Taking Your Vinyl to the Next Level
High-Fidelity Home Audio
An update of the critically acclaimed AT-LP120-USB, this turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier.
