DacMagic 200M Digital to Analog Converter + Headphone Amplifier w/Bluetooth
DacMagic 200M Digital to Analog Converter + Headphone Amplifier w/Bluetooth
In stock
Couldn't load pickup availability
- Free Local Delivery
- Free Shipping
KEY FEATURES
• Dual ESS SABRE ES9028Q2M Reference DACs – one per channel, handles digital audio up-to 24-bit/768kHz or DSD512

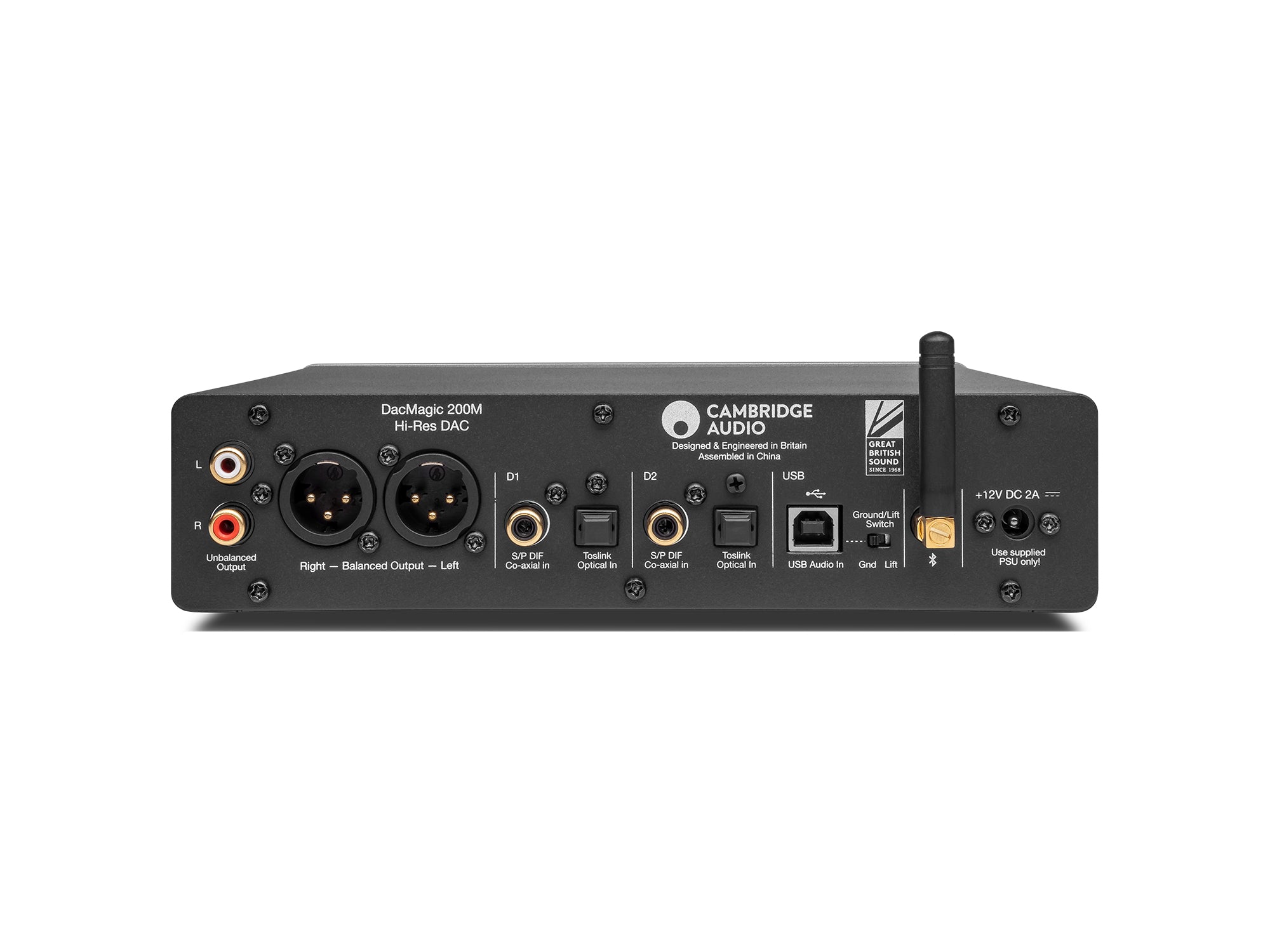

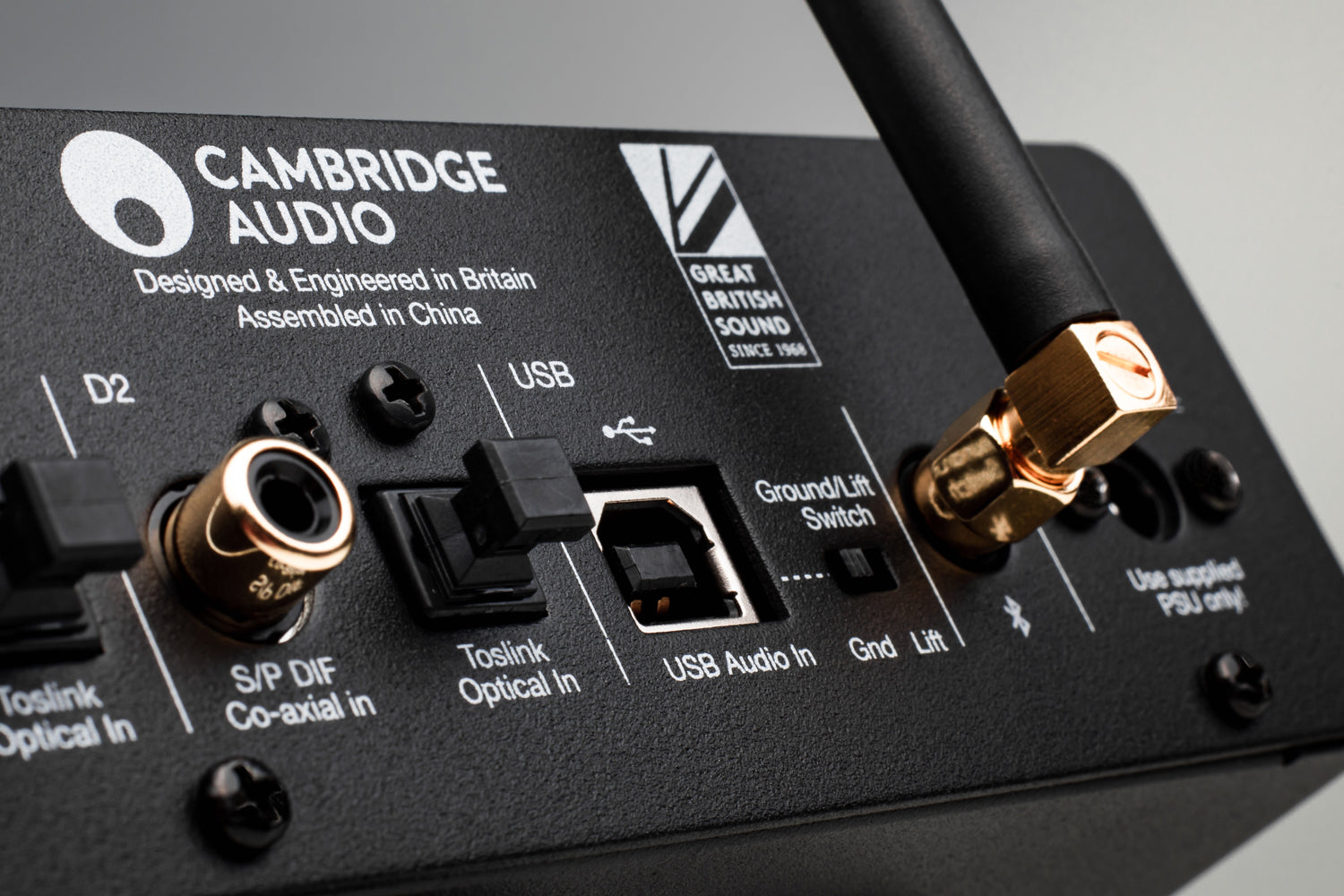

• Digital Inputs: 2 pairs of optical & coaxial terminals, plus USB Audio – for audio sources incl. CD & Blu-ray players, laptops, games consoles etc.

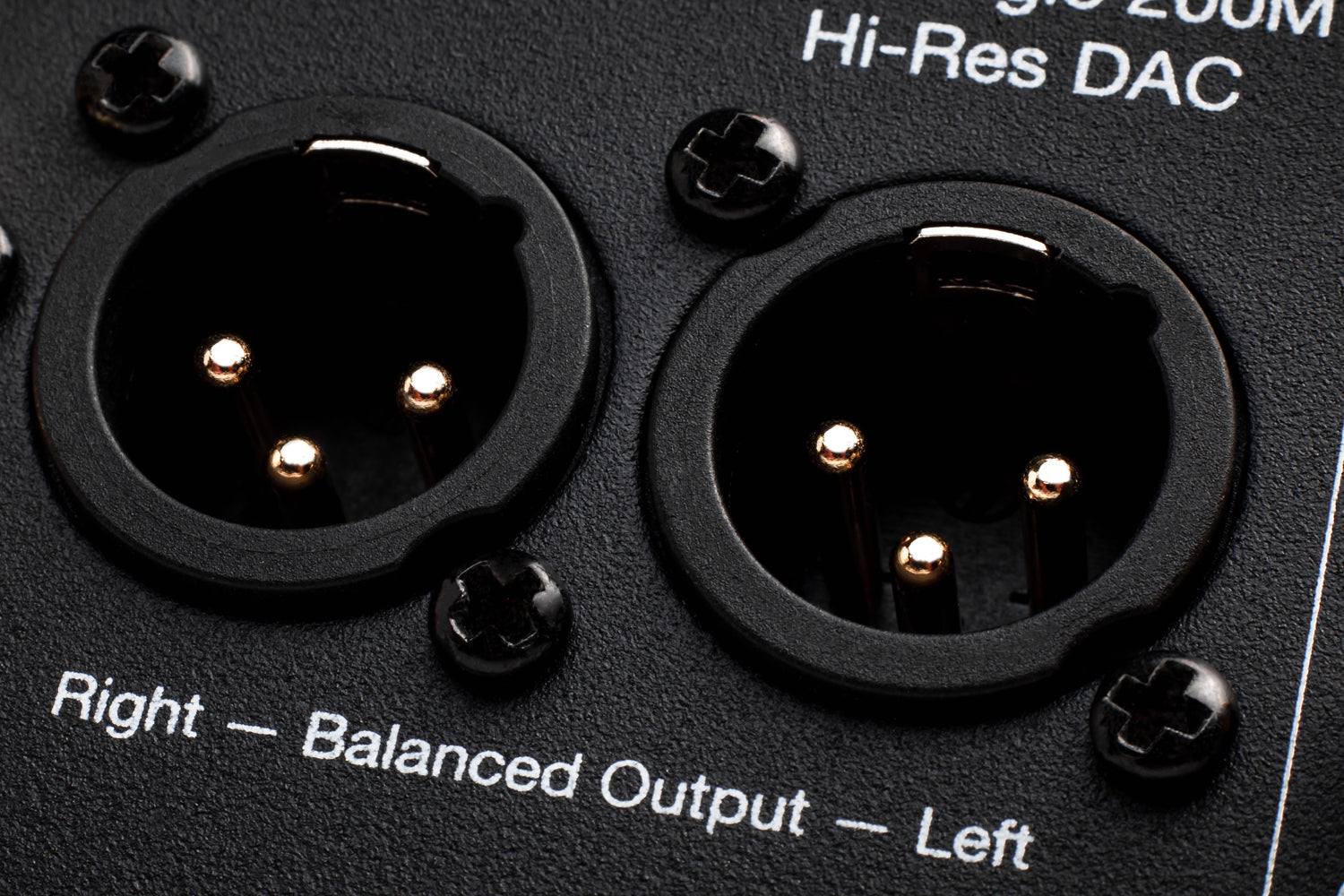

• Analogue Outputs: ¼” headphone, XLR & RCA connectors – for max. versatility
• Bluetooth aptX input – wirelessly receive digital audio from smart devices
• Supports MQA – for approved studio-quality digital audio
• Compact half-width hi-fi unit
Technical specs
Technical specs
Digital to Analogue Converters: Dual ESS ES9028Q2M DACs

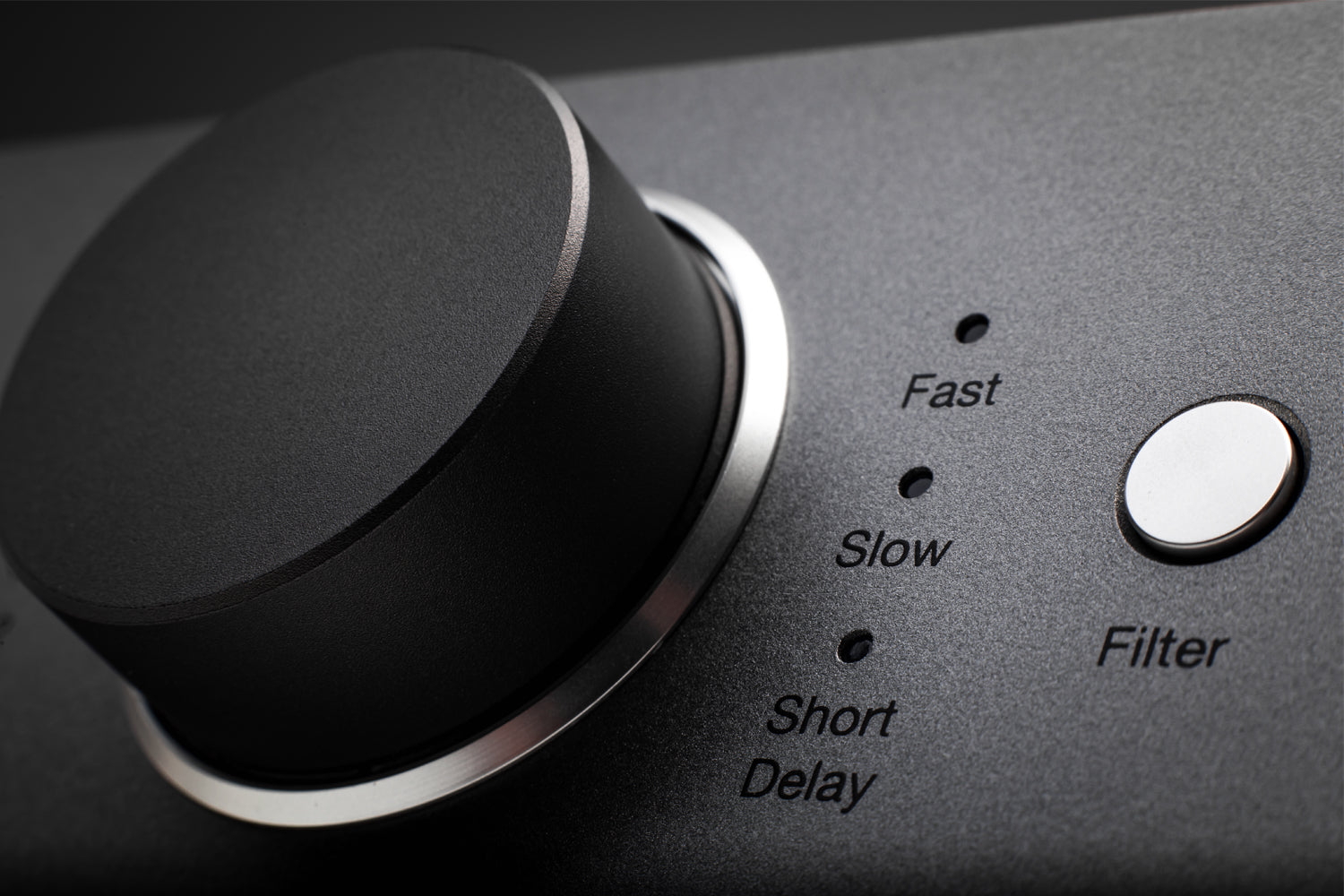

Digital Filter: Selectable, Fast – Slow – Short delay
Frequency Response: 10Hz to 50kHz (±1dB)
THD+N @ 1khz 0dbfs: <0.0005% (A-Weighted)
Signal To Noise Ratio: >115dB (A-Weighted)
Crosstalk @ 10khz: < -110dB
Output Impedance: <50 Ohms (unbal), <100 Ohm (bal)
Max. Output Level (Unbalanced): 2.1V rms (fixed or variable – user selectable)
Max. Output Level (Balanced): 4.2V rms (fixed or variable – user selectable)
Digital Input Word Widths Supported: 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB)

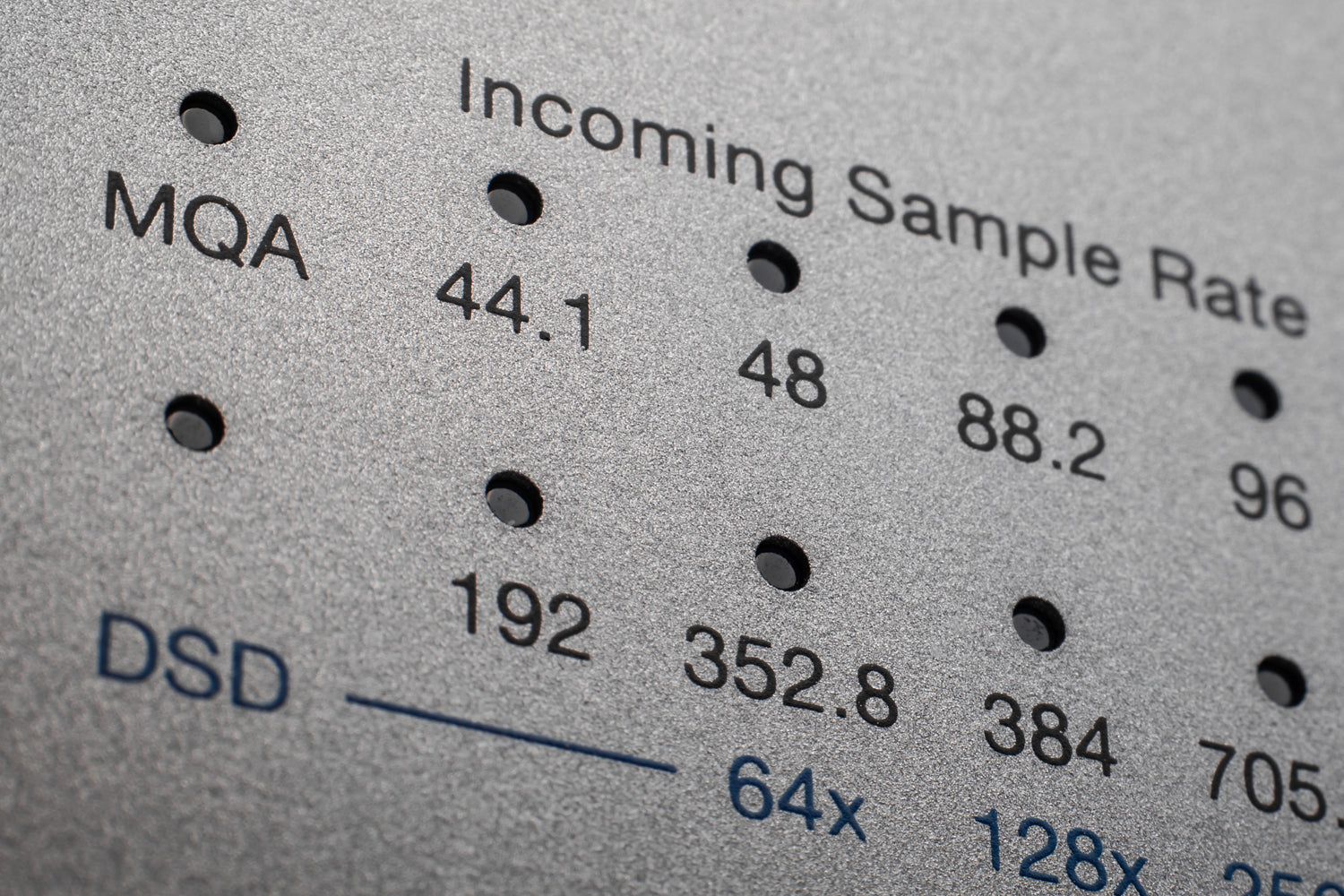

Digital Input Sampling Frequencies Supported: 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)
MQA Compatibility: Full decoding (Core + Renderer)
Bluetooth: v4.2, A2DP profile, SBC and AptX codecs
Roon Tested: Yes
Headphone Output Thd+N: < 0.001% at 1kHz 0dBFS @ 100mW into 32ohm
Headphone Output S/N: > 115dB (A-Weighted)
Max Output Power: >300mW @ 32ohm, >65mW @ 150ohm
Frequency Response: 10Hz - 50kHz (±1dB)
Recommend Headphone Impedance : 10 Ohm to 600 Ohm
Max Power Consumption: 12W
Color: Lunar Grey
Dimensions: (HXWXD) 52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
Weight: 1.2kg/2.6lbs
INCLUDED ACCESSORIES
INCLUDED ACCESSORIES
• Power Cable
• Bluetooth antenna
• Quick Start Guide
• 3 AC power plug adapters (US/Euro/UK)
