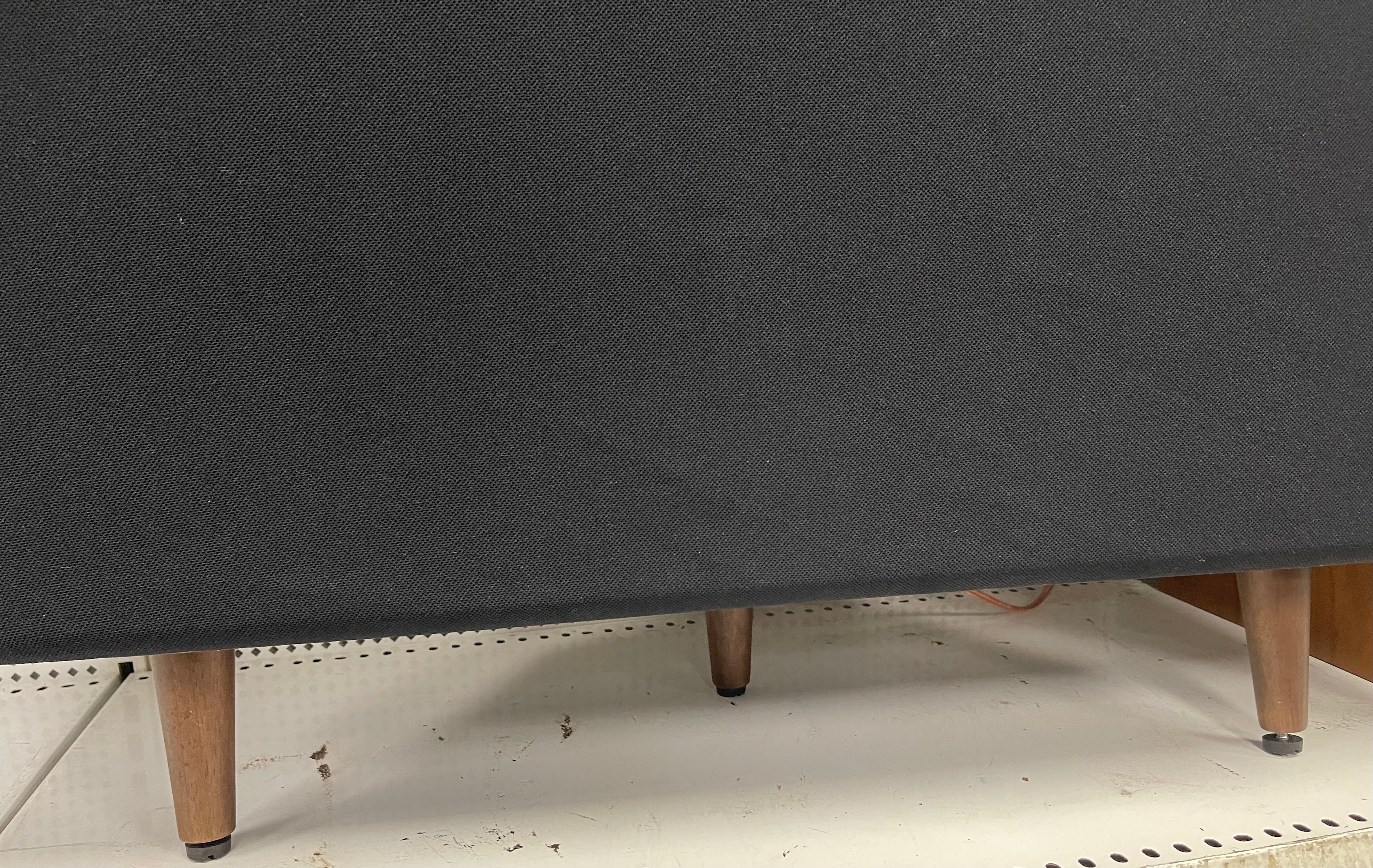

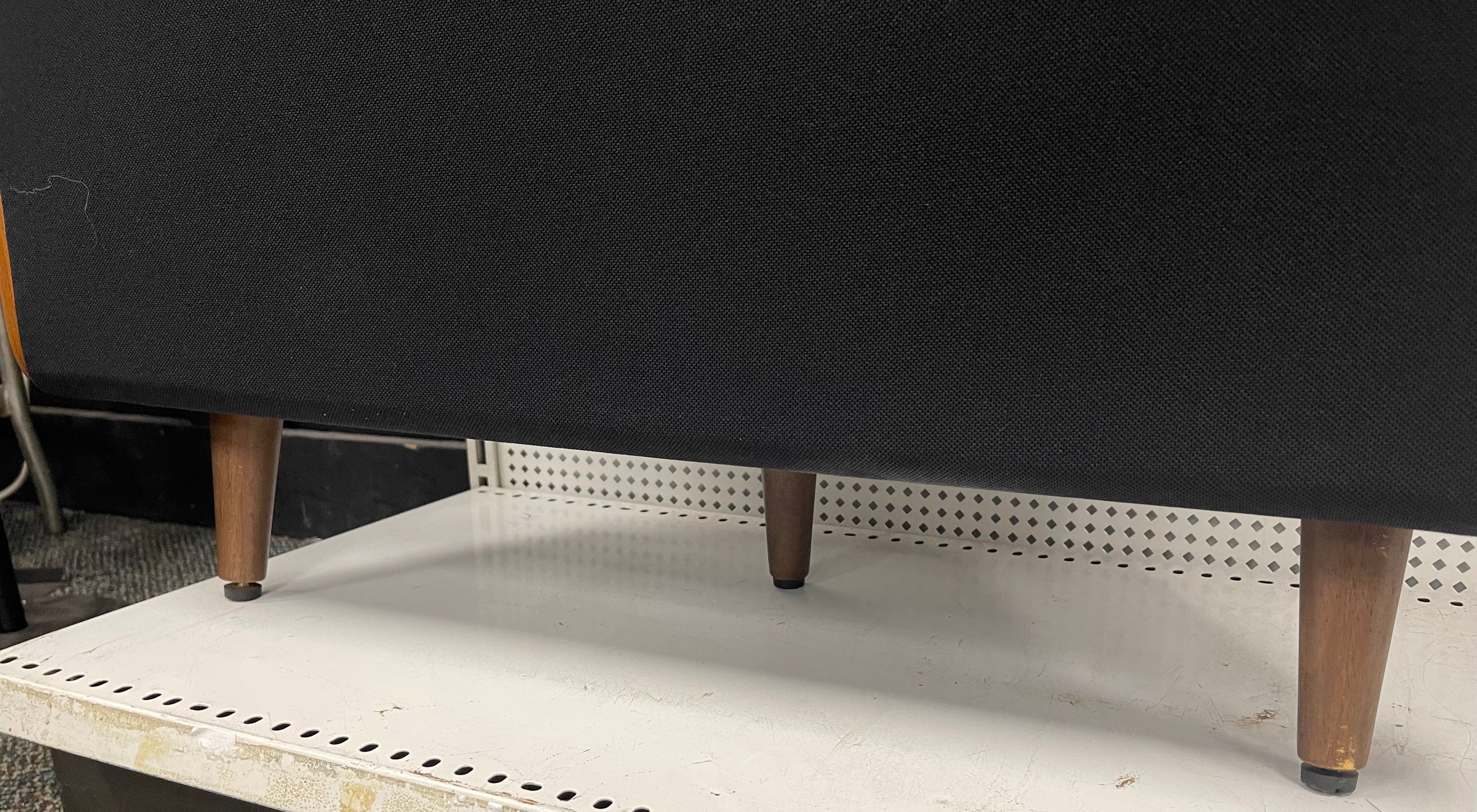

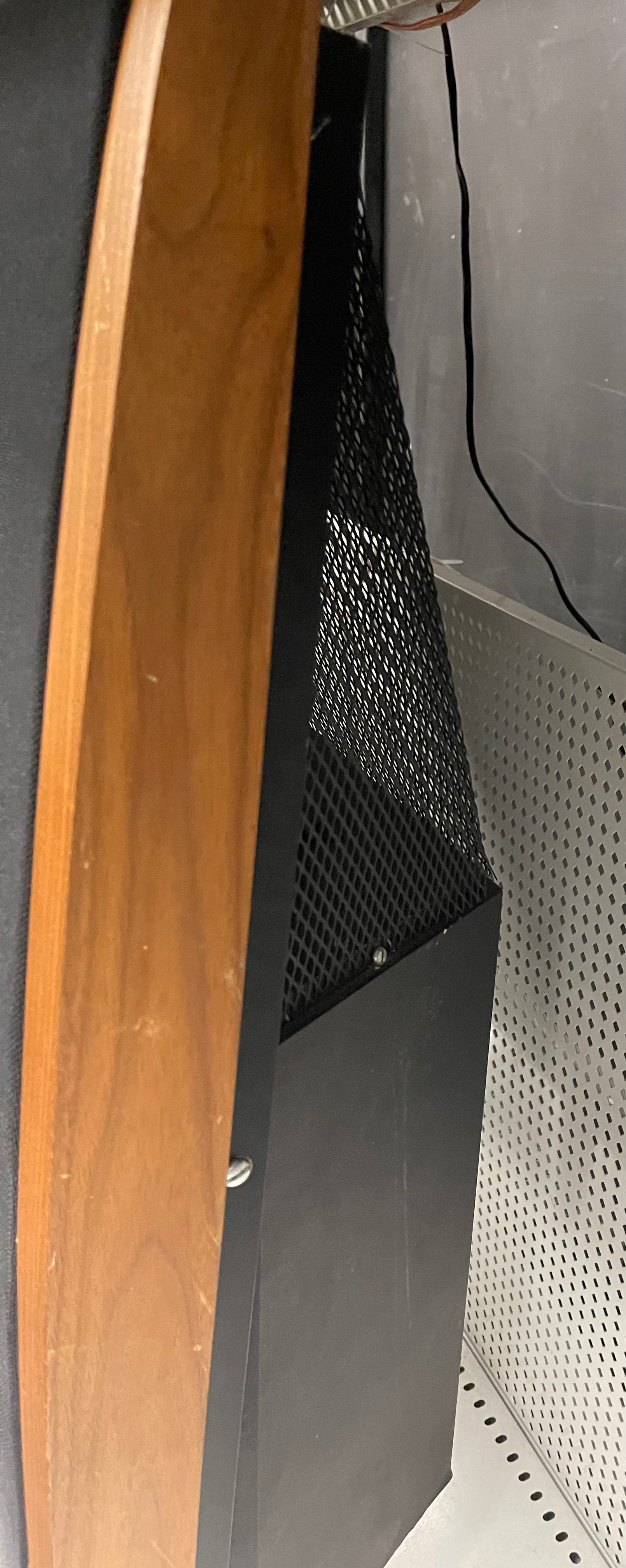

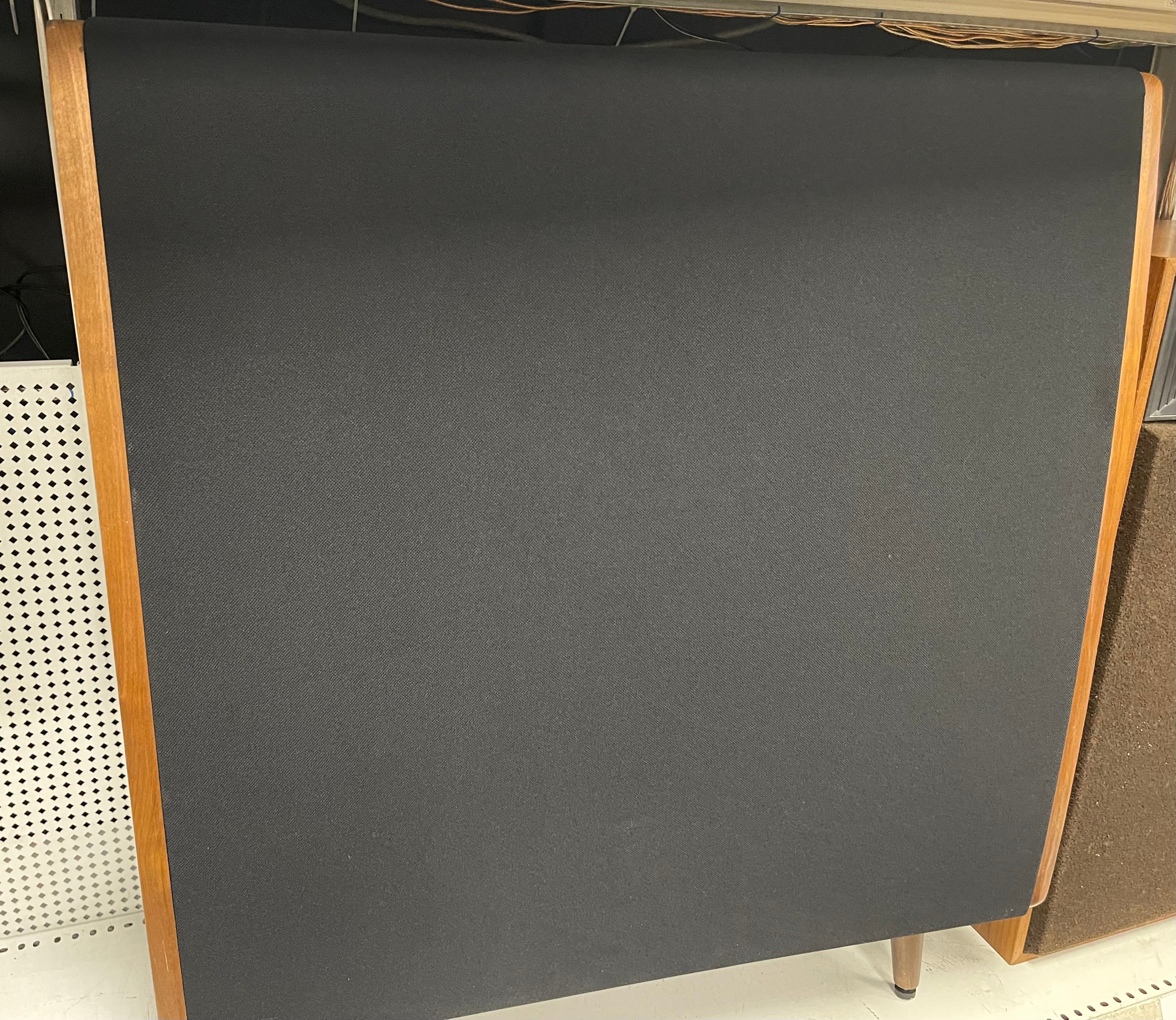

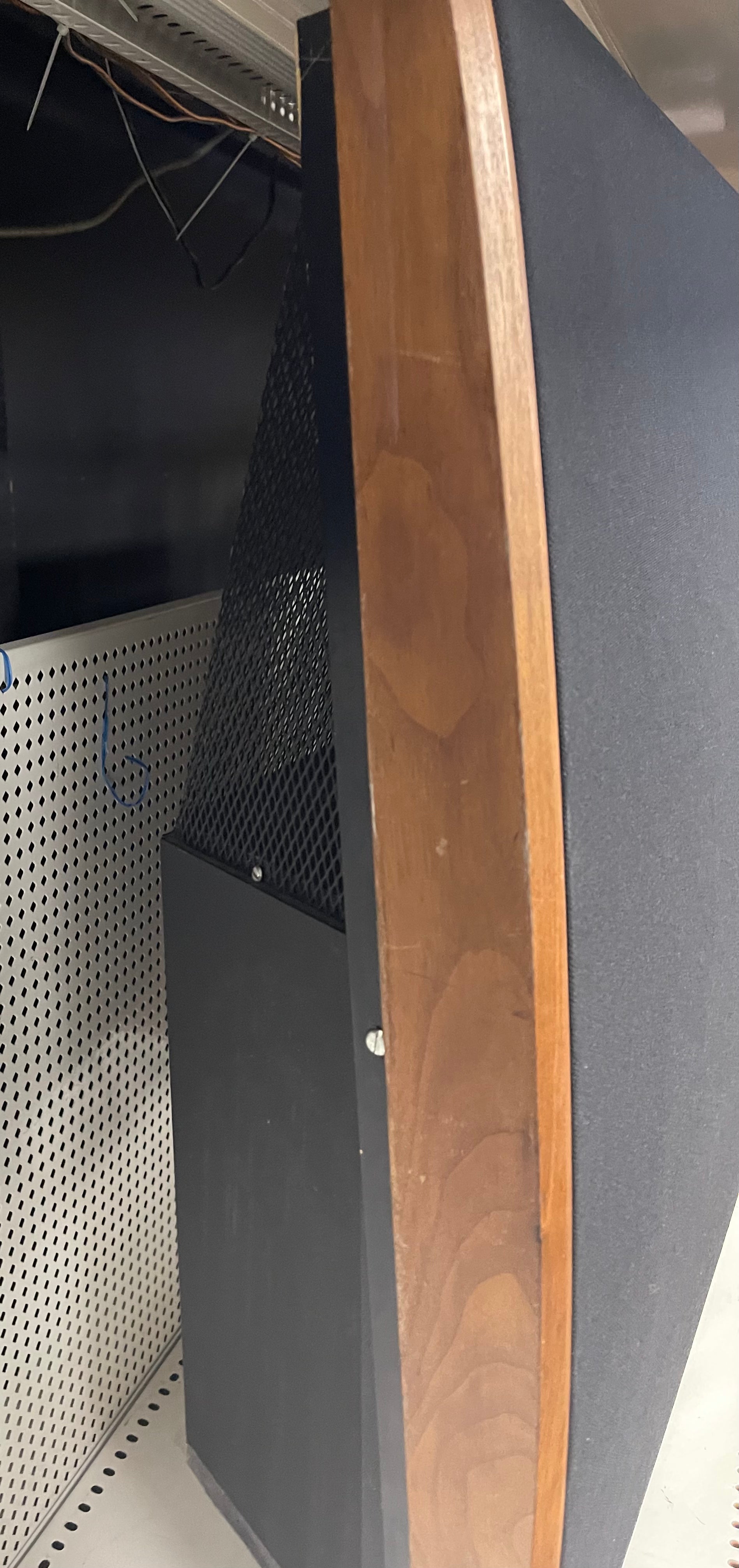

Dahlquist DQ-10 Five Way Dynamic Loudspeaker System

Restored by us and comes with a 30 day warranty!

In-store pickup required.

Description

The Phased Array model DQ-10 is a five-way dynamic loudspeaker system.

It's operation is based on patented acoustical techniques which provide very accurate reproduction of source material.

In order to minimize undesirable effects from diffraction, each driver has been separately mounted on the smallest possible baffle, whose dimensions were determined by the frequency range of the passband.

This is directly opposed to the standard practice of mounting the drivers on one relatively large baffle.

The mounting method used in the Phased Array also makes it possible to incorporate time-delay correction through relative front-to-back positioning of each element.

Specifications

Type: 5 way, 5 driver loudspeaker system

Frequency Response: 35Hz to 27kHz

Recommended Amplifier: 60 to 200W

Crossover Frequency: 400, 1000, 6000, 12000Hz

Impedance: 8Ω

Bass: 1 x 10" cone

Midbass: 1 x 5" cone

Midrange: 1 x 1.75" soft dome

Tweeter: 1 x 0.75" dome

Super Tweeter: 1 x piezoelectric element

Weight: 50lbs
