Model Three Bookshelf Speakers
Model Three Bookshelf Speakers
Out of stock
Couldn't load pickup availability
For local orders please contact us. We offer custom orders for colors and options not currently in-stock. Free in-home installation is available for Louisville and surrounding areas.
Key Features
- Iconic Mid-Century Modern Styling
- Acoustic Suspension Design – The most accurate and linear enclosure design available today
- Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments
- Non-Resonant Die-Cast Aluminum Woofer Frame
- Machined Aluminum 1” tweeter faceplate
- KLH cabinetry featuring a structurally reinforced 3⁄4” MDF Enclosure
- Thirteen Component network using high quality iron-core inductors & Mylar capacitors
- Each speaker includes its own 8 ̊ slant riser base made of powder coated 14-gauge steel
- Low-Profile Magnet Attached Grille
- 10-Year Warranty
Technical Specifications
Technical Specifications
Frequency Response: 46Hz – 20,000Hz +/- 3dB
Low Frequency Extension: -10dB @ 35Hz In-Room
Sensitivity: 88dB @2.83V / 1M Free-field Sensitivity: 85dB @ 2.83V / 1M
Power Handling: 150 Watts / 600 Watts Peak
Recommended Amplification: 30 Watts to 150 Watts In-Room Maximum SPL: 108dB
Maximum Output @45Hz: 1 101dB
Impedance: 6 Ohms (3.7 ohm minimum @320 Hz)
Horizontal Dispersion: 140° Degrees

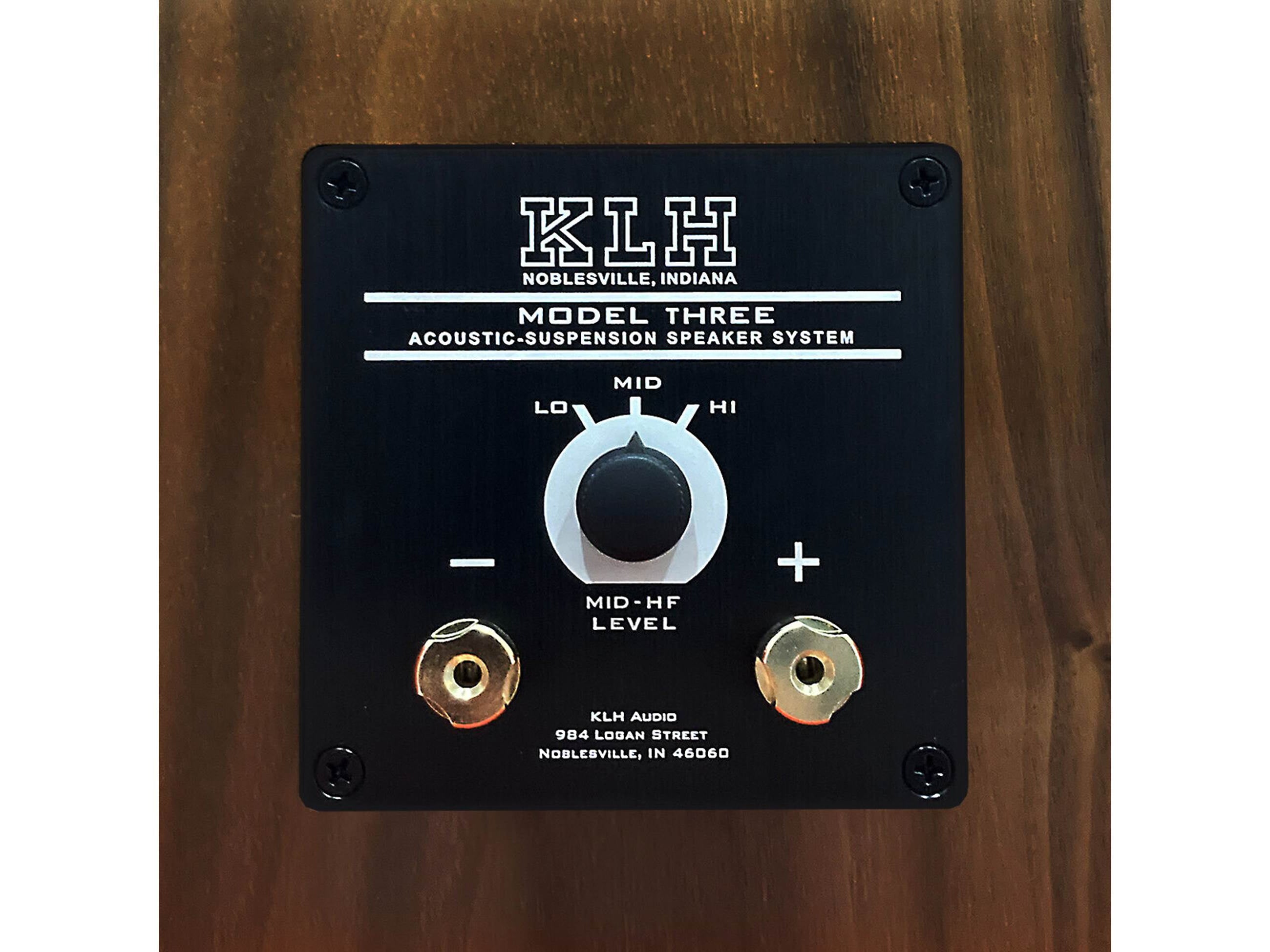

Features: Three-Position Acoustic Balance Control
Crossover Frequency: 1,600Hz
High Frequency Driver: 1" Aluminum Dome with Soft Rubber Suspension
Low Frequency Driver: 8" Pulp-Paper Cone with Reverse Roll Rubber Suspension, 1.5" Diameter Flat-Wire Voice Coil
Enclosure Material: Structurally Reinforced ¾" Medium Density Fiberboard
Inputs: Five-Way Gold-Plated Binding Posts
Height: 28.25" (71.8cm) w/ Included Riser Base 19.0" (48.2cm) w/o Riser Base
Width: 12.25" (31.1cm)
Depth: 11.5" (29.2cm) w/ Included Riser Base 10.5" (26.7cm) w/o Riser Base Weight: 29Ibs. (13.2kg) w/o Riser Base 36Ibs. (16.4kg) w/ Included Riser Base
Included Accessories
Included Accessories

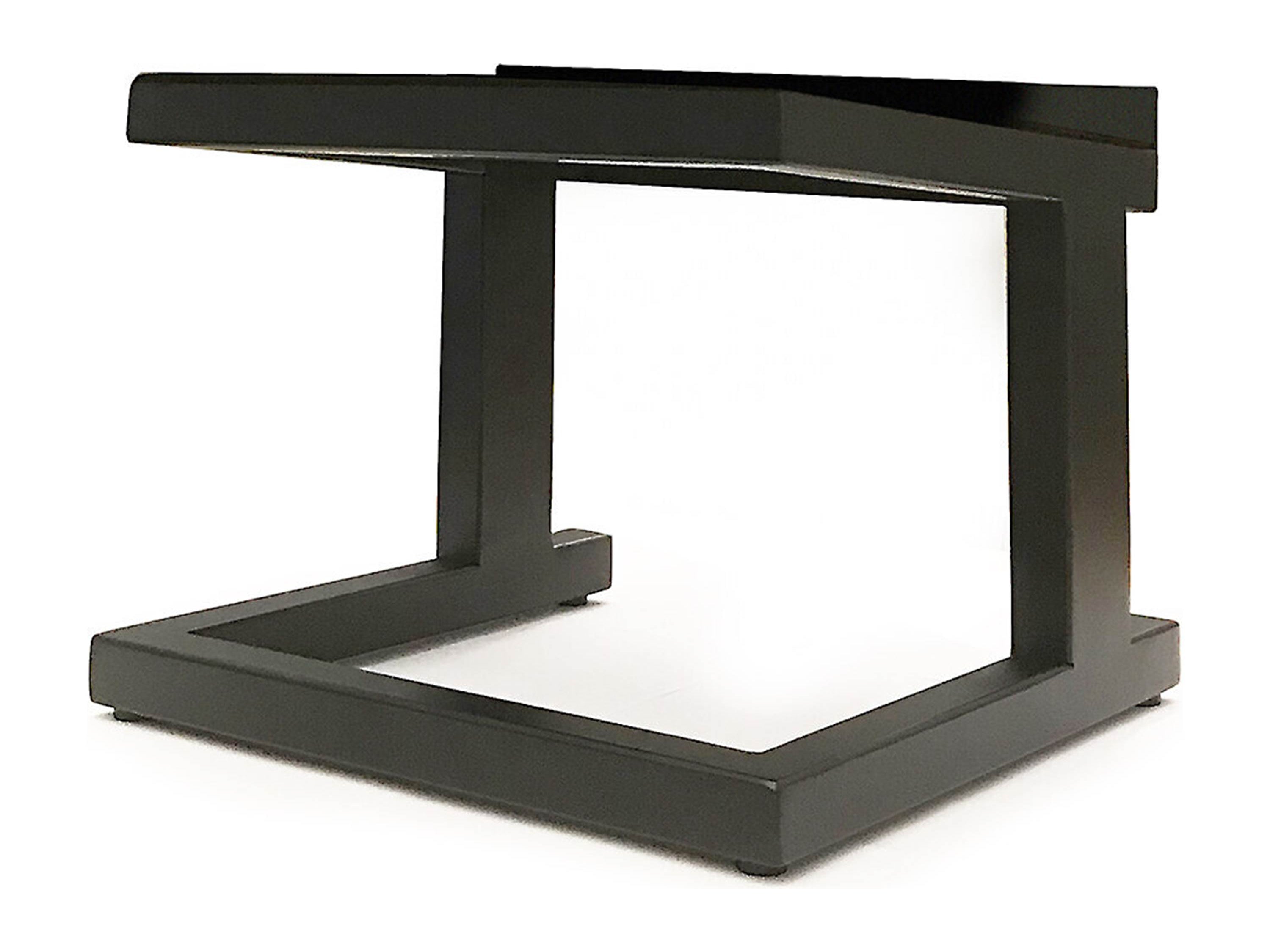

- 8° Slant Riser Base
- Removable Stonewash Linen Grilles
