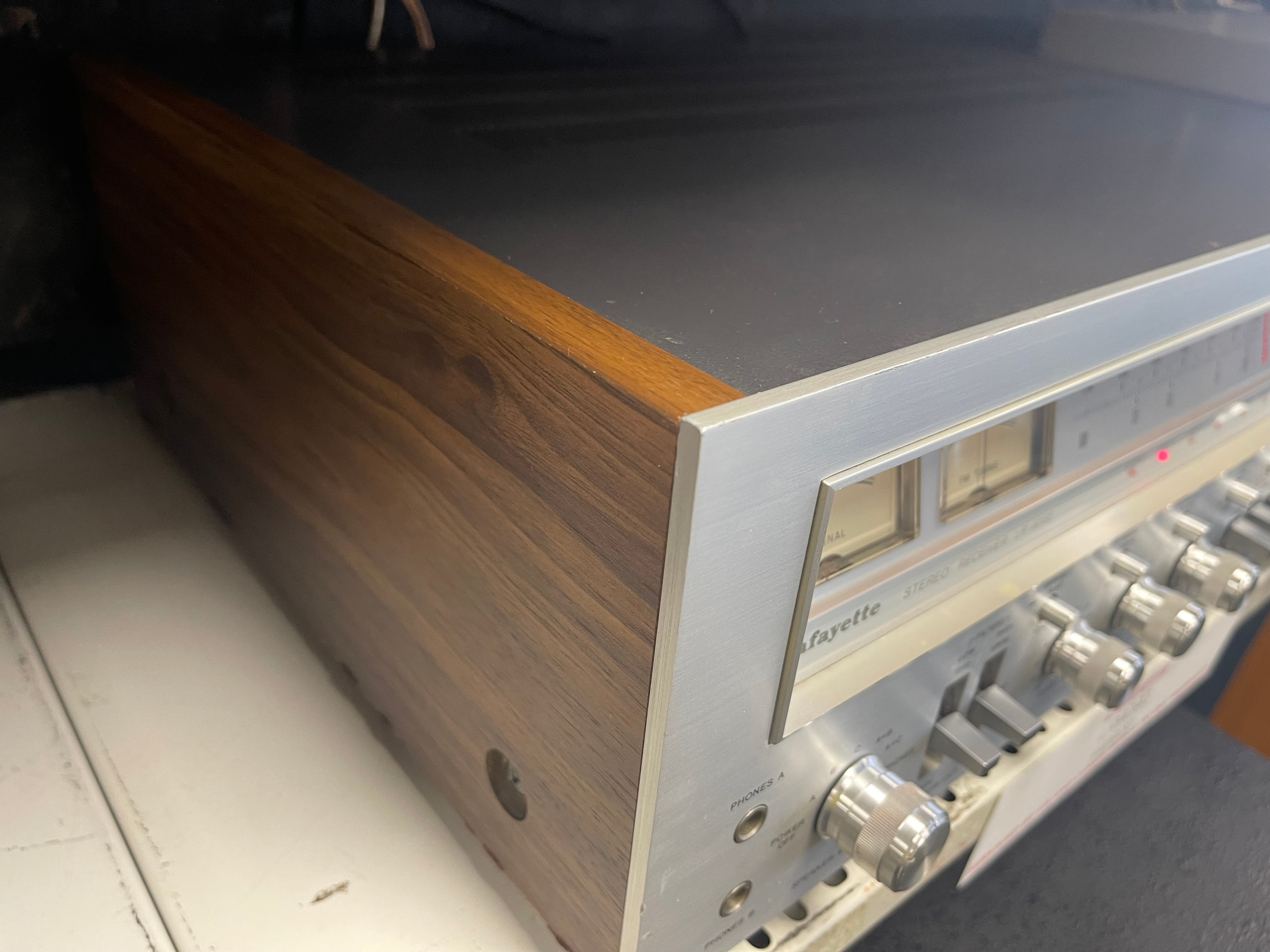

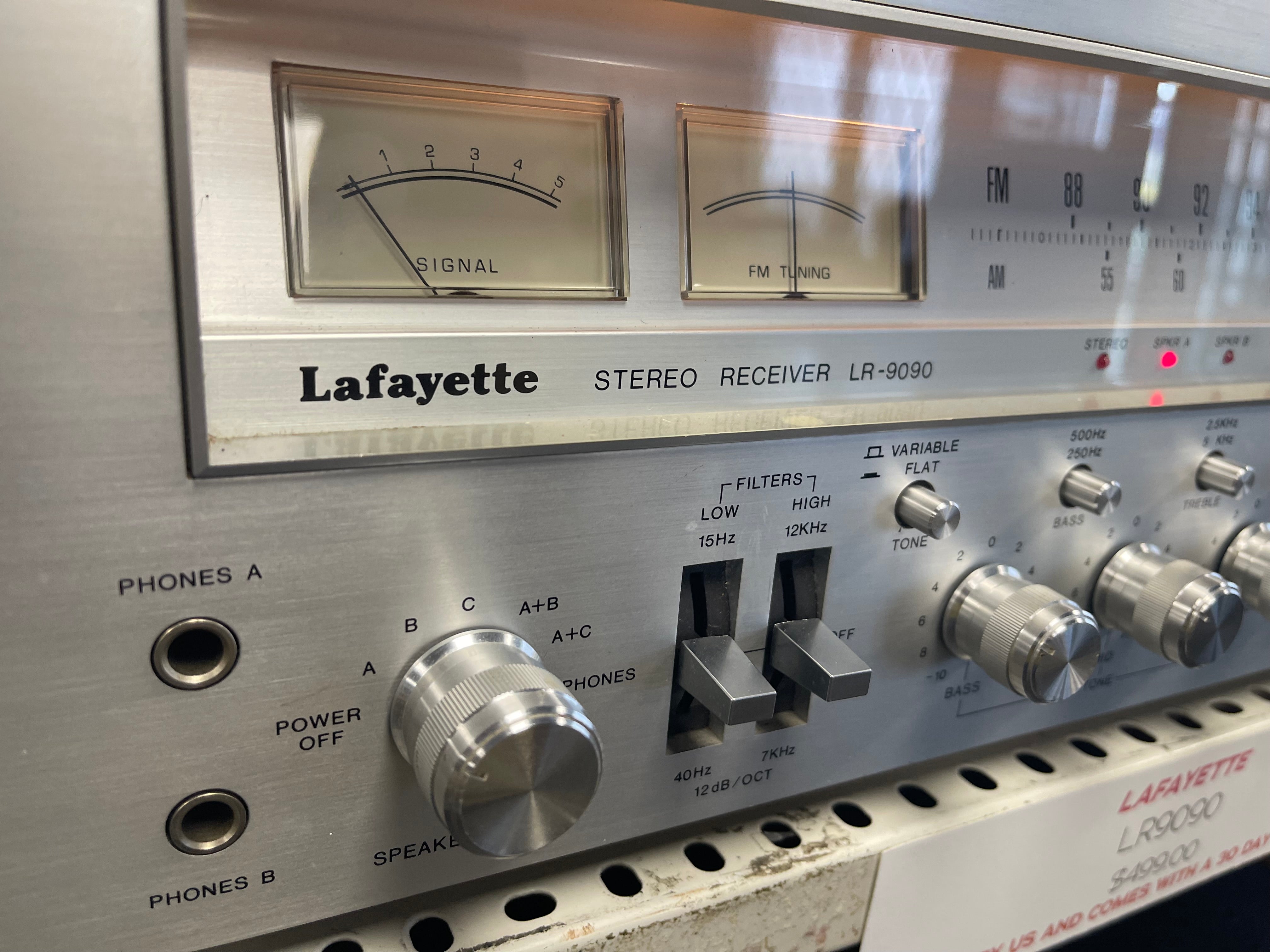

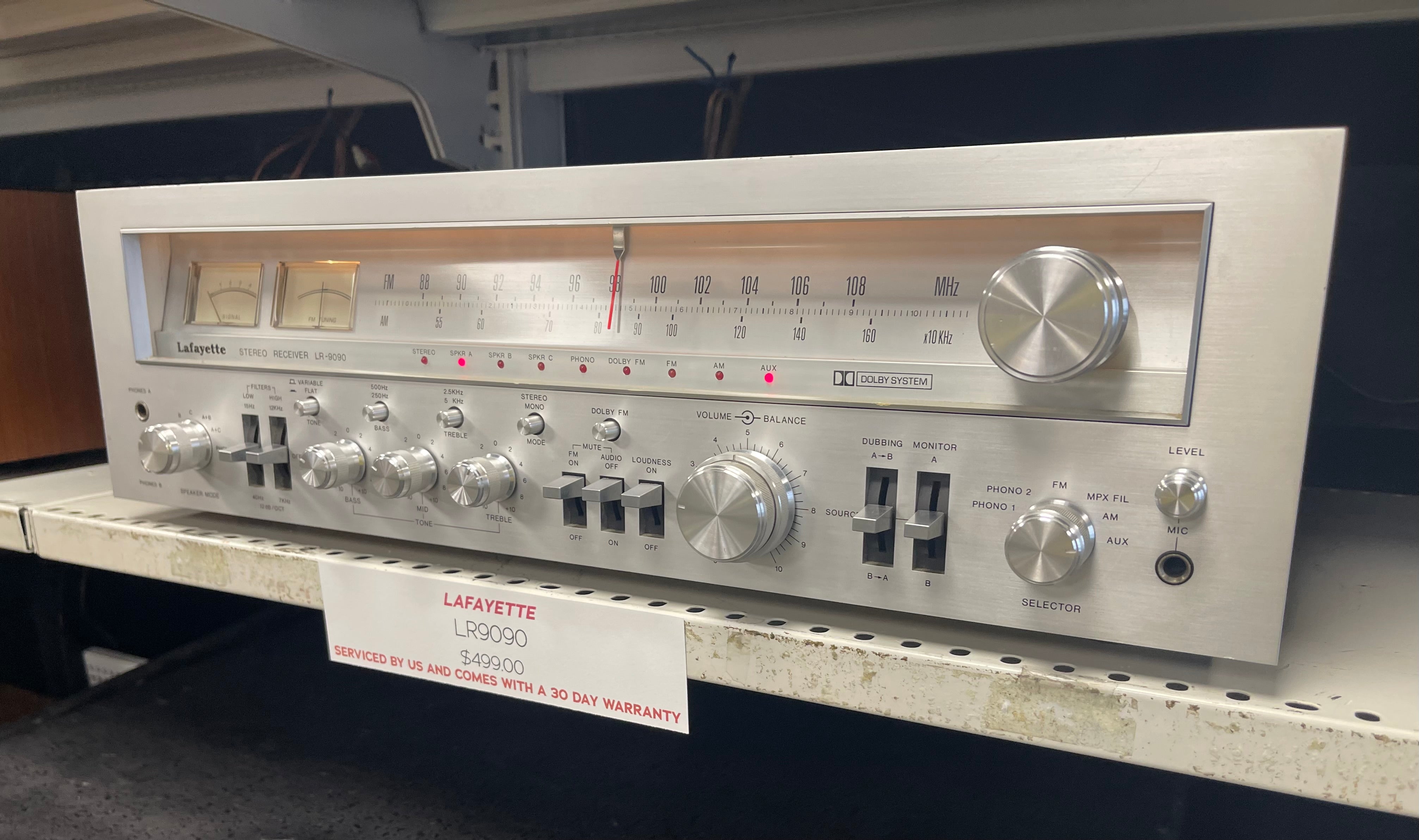

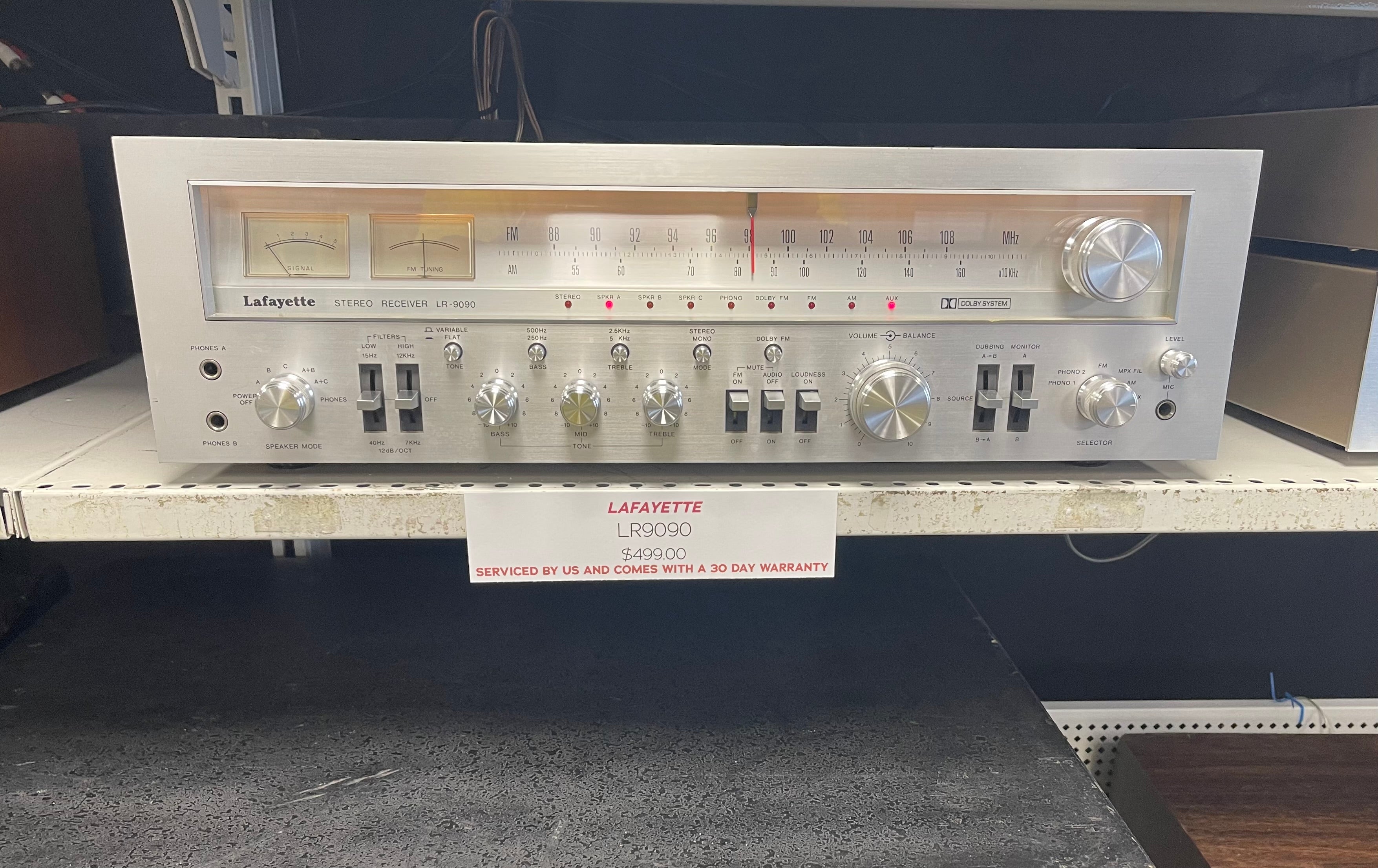

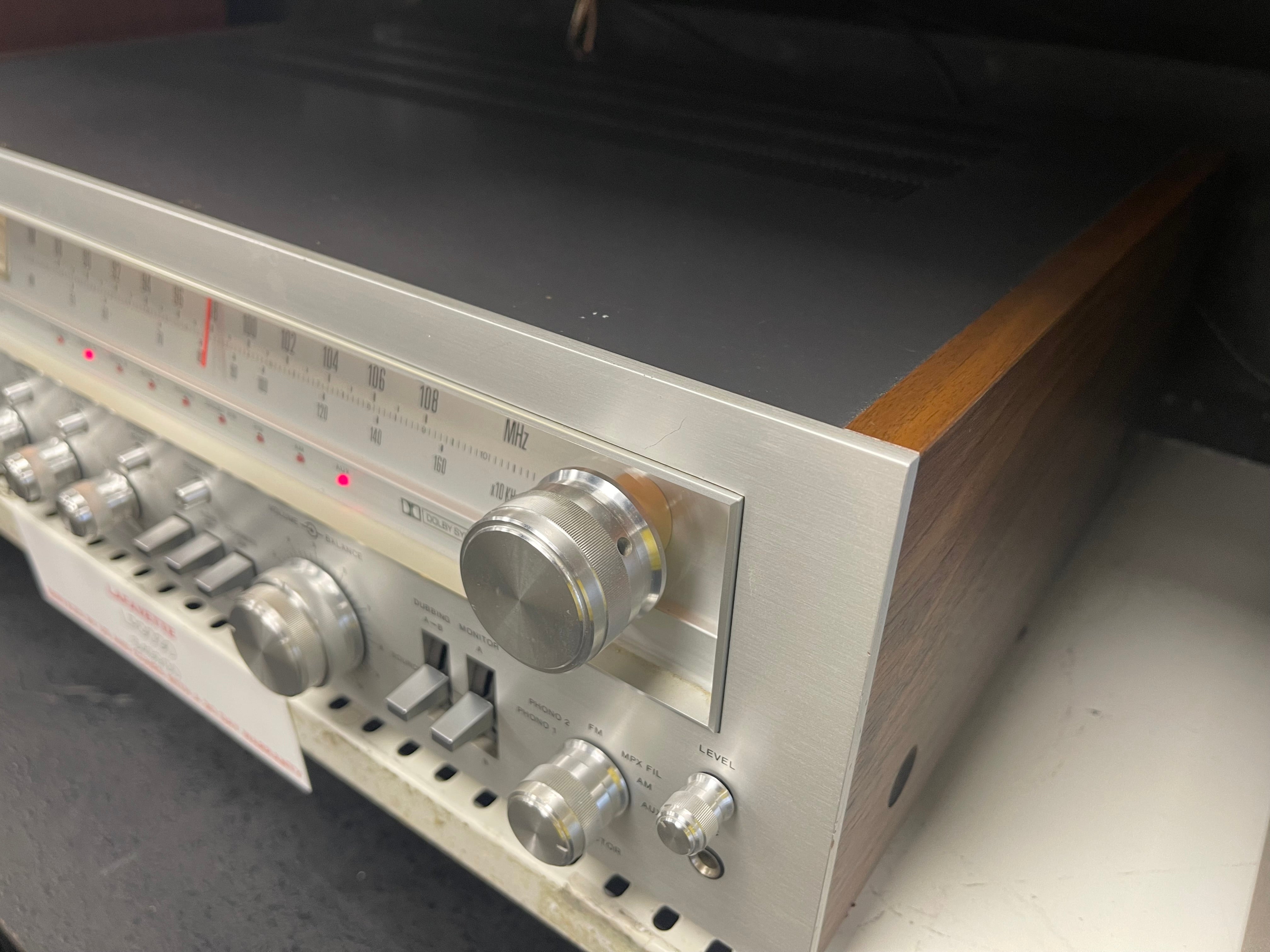

Lafayette LR 9090

Condition

Serviced by us and comes with a 30 day warranty.

Description

The Lafayette 9090 is a highly sophisticated solid-state stereophonic high fidelity receiver that combines an AM tuner, a highly sensitive FM stereo tuner, and a high quality integrated stereo amplifier in one single, handsomely styled unit.

The receiver not only offers all the advantages expected from solid-state circuitry such as instant operation, low current consumption, and cool operation, but also provides extremely low distortion and noise, plus wide frequency response at its full rated power to ensure the finest sound reproduction.

Stereo inputs have been provided for reproduction from a wide variety of external program sources that you may wish to use - record players, tape recorders, tape players, etc.

Specifications

Tuning range: FM, MW

Power output: 90 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.1%

Input sensitivity: 6mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 60dB (MM), 80dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 8 x IC, 2 x MosFets, 4 x dual transistors, 43 x transistors, 41 x diodes

Dimensions: 530 x 162 x 394mm

Weight: 17kg

Year: 1977
