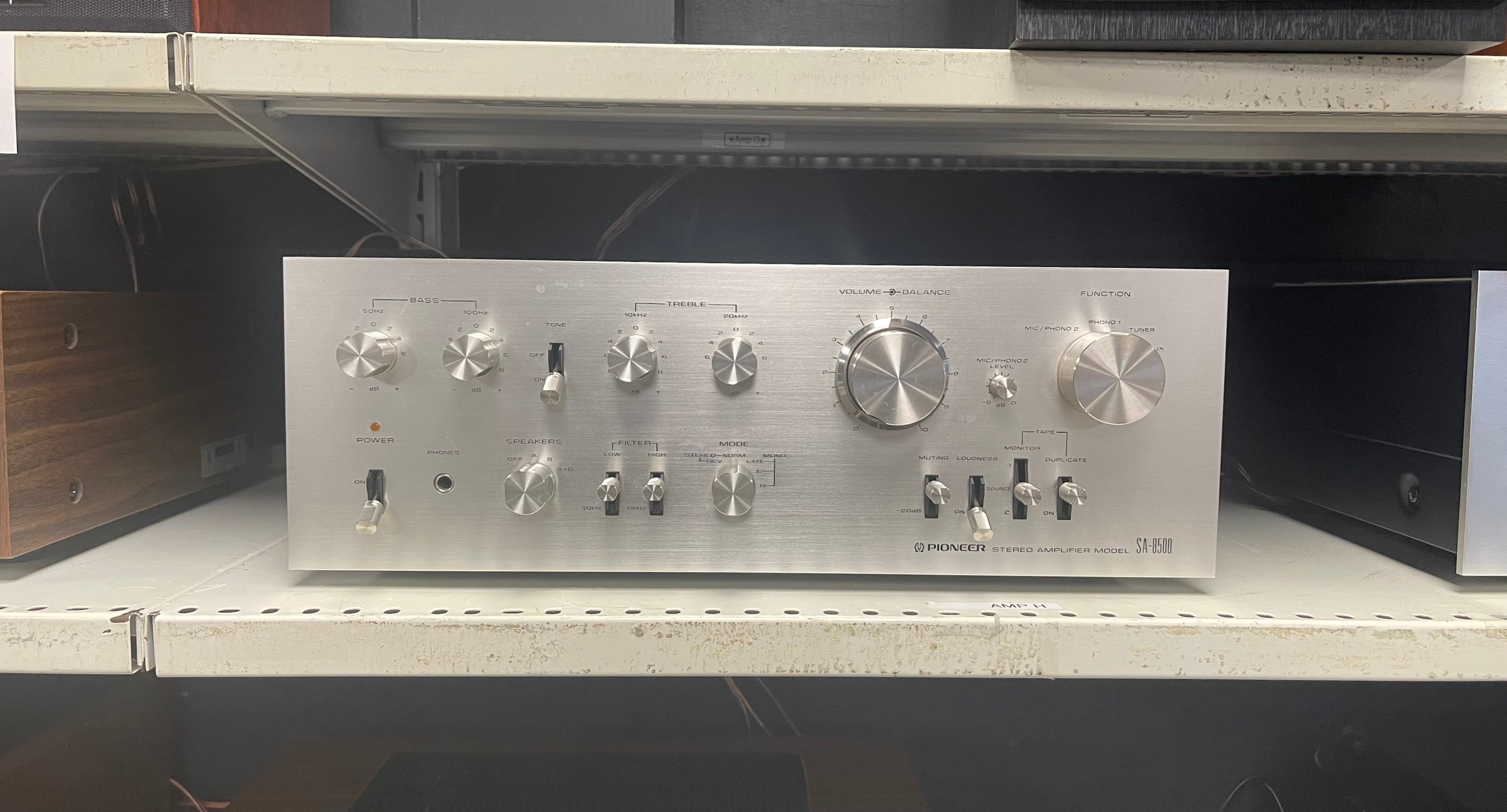

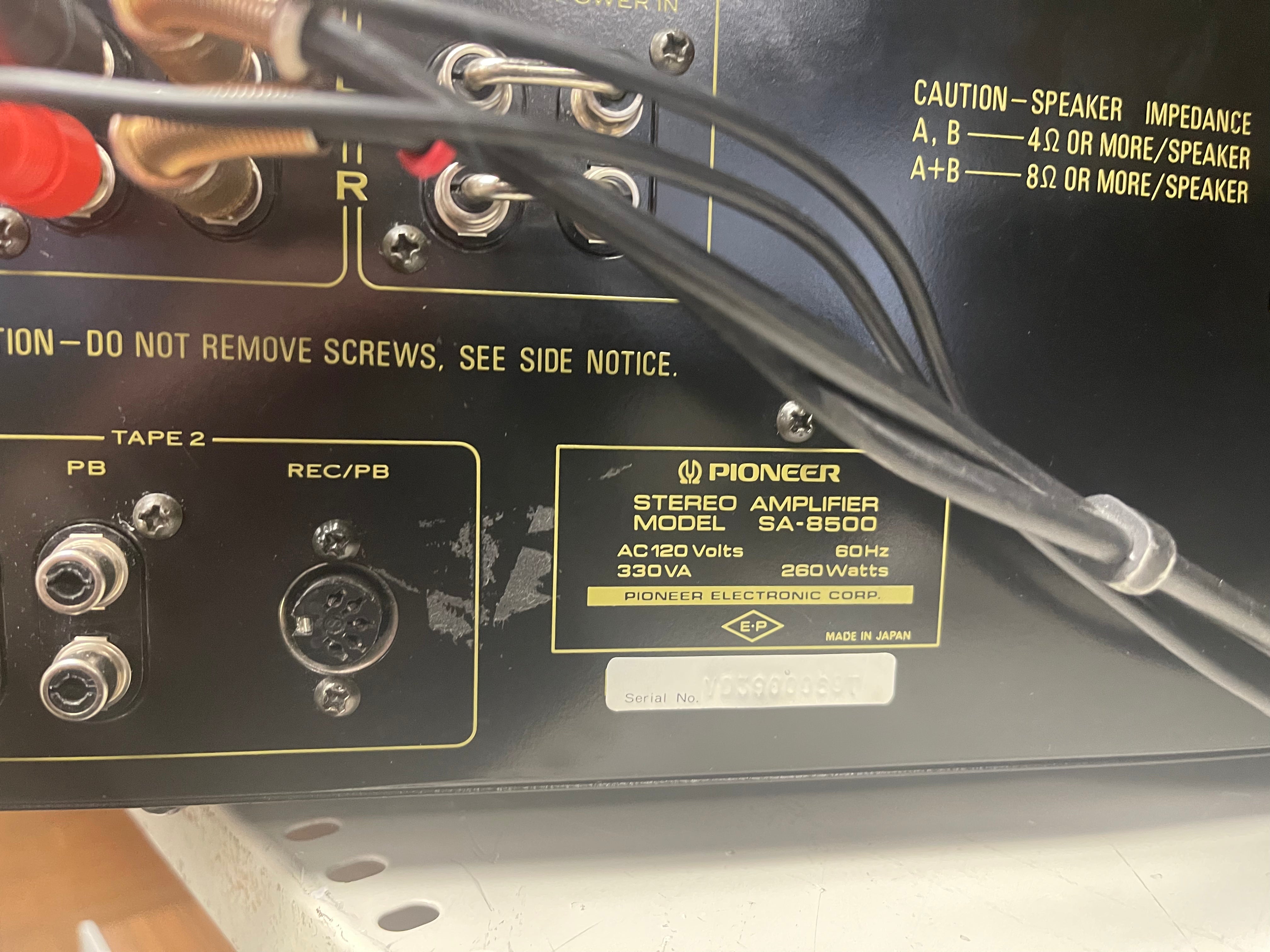

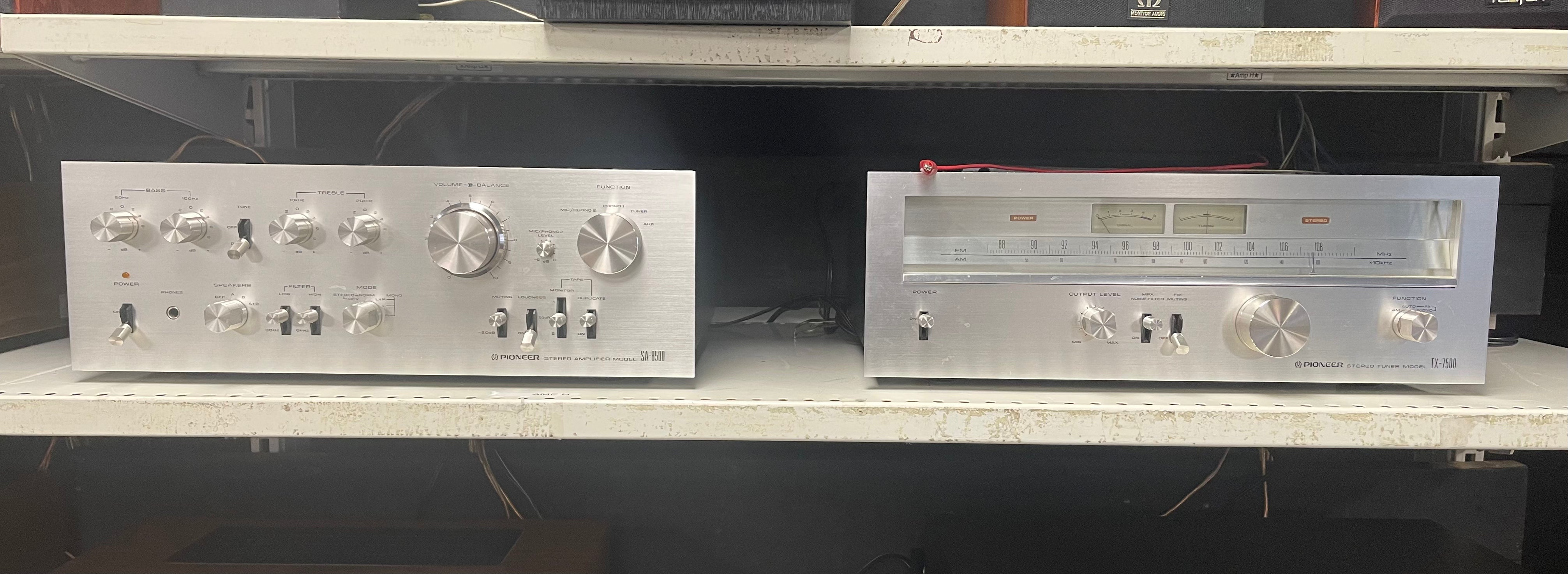

Pioneer SA-8500 Amp/TX 7500 Tuner

Specifications-Amp

 Power output: 60 watts per channel into 8Ω (stereo)

Frequency response: 7Hz to 40kHz

Total harmonic distortion: 0.1%

Damping factor: 30

Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN), 1V (Pre out)

Semiconductors: 45 x transistors, 27 x diodes

Dimensions: 420 x 150 x 345mm

Weight: 13kg

Accessories: connecting cord

Year: 1976

Specifications- Tuner

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 525 to 1605 kHz

Sensitivity: 1.4uV (FM)

Signal to Noise Ratio: 68dB (FM), 50dB (MW)

Distortion: 0.3% (FM)

Frequency response: 20Hz to 15kHz (FM)

Output: 650mV

Dimensions: 420 x 150 x 365mm

Condition: This receiver/tuner set is being sold on consignment and has not been serviced by us. It has only been tested for functionality and is confirmed to be in good working order. There is no warranty or returns on consignment items.
