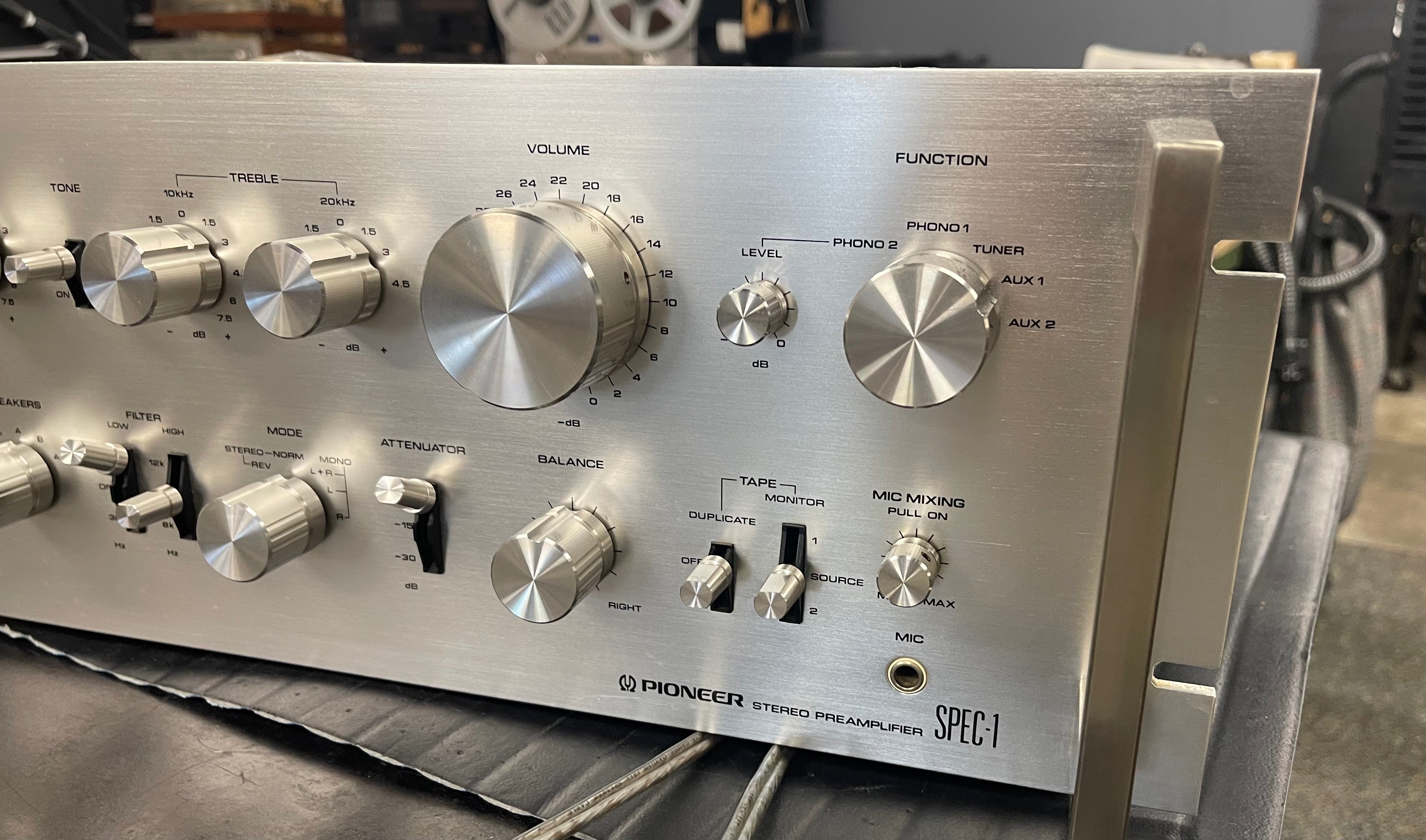

Pioneer Spec 1 Rack Mount Stereo Pre-Amp

Serviced by us and comes with a 30 day warranty!

Description

The Spec-1 has differential amplifier circuitry incorporated in the equalisation and tone control amplifiers.

This is complemented by a dual positive and negative power supply system for all amplifier sections, which provides improved DC balance and stability, while eliminating click noises due to switching.

An electronic muting circuit, employing a reed relay, blocks surge noise associated with power switch operation.

Specifications

Frequency response: 10Hz to 70kHz

Total harmonic distortion: 0.03%

Input sensitivity: 2.5mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 150mV (line), 2V (Pre out)

Semiconductors: 50 x transistors, 33 x diodes

Dimensions: 480 x 186.5 x 365mm

Weight: 11.2kg

Year- 1976
