Yamaha MX-600U & CX-600U
Yamaha MX-600U & CX-600U
ALL CONSIGNMENT ITEMS UNDERGO TESTING AND VERIFICATION TO ENSURE THEY ARE IN GOOD WORKING CONDITION. PLEASE NOTE THAT THIS PARTICULAR ITEM IS BEING SOLD ON CONSIGNMENT AND HAS NOT UNDERGONE ANY SERVICING OR REFURBISHMENT BY MAGNETIC TAPE RECORDER. CONSIGNMENT ITEMS ARE SOLD IN THEIR CURRENT CONDITION, WITHOUT ANY WARRANTY PROVIDED. PLEASE CONTACT US DIRECTLY IF YOU HAVE ANY QUESTIONS OR CONCERNS REGARDING THIS ITEM.
Couldn't load pickup availability

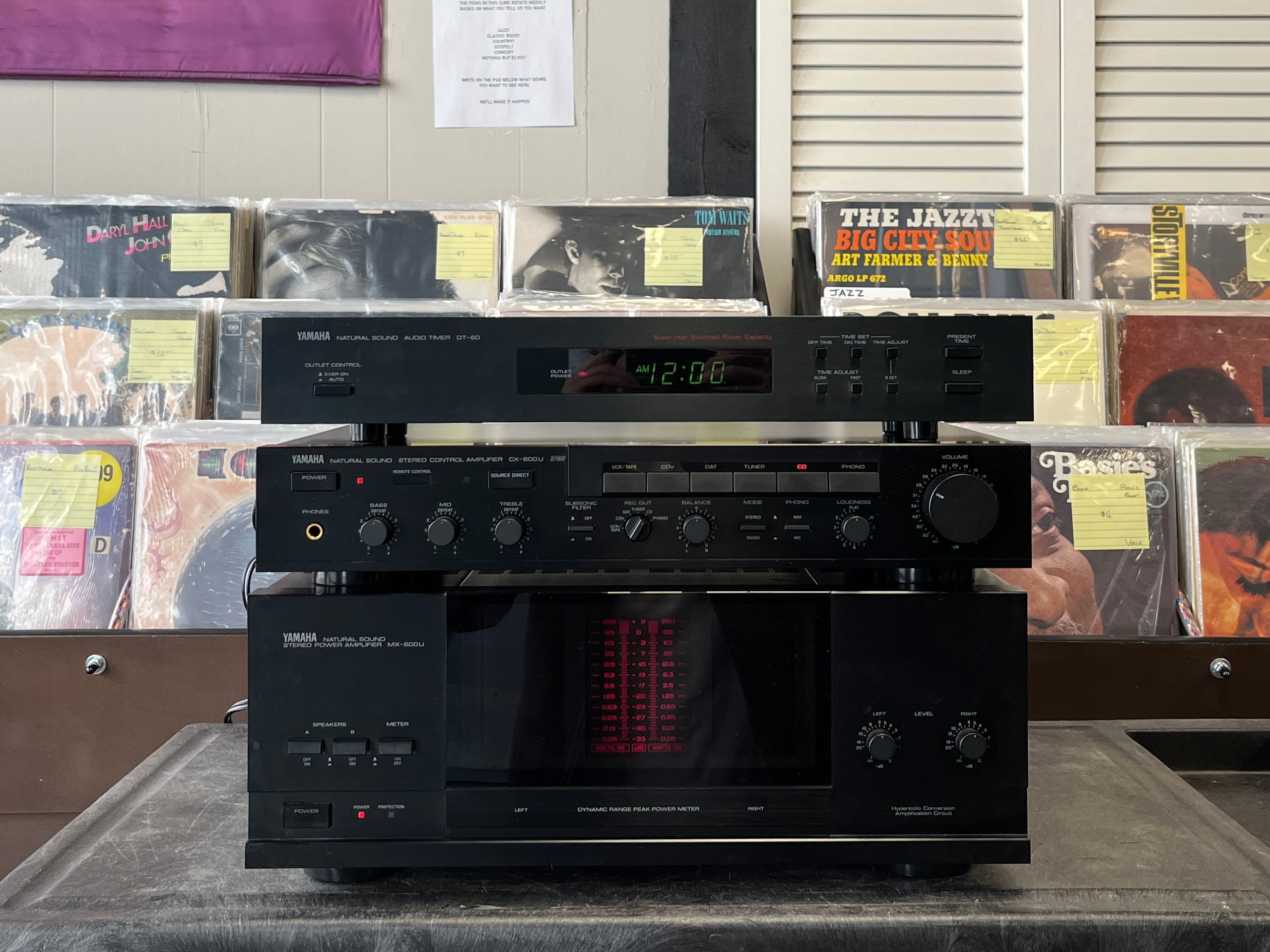

Enjoy the masterful combination of style and substance with this beautiful Yamaha component set!
The centerpiece—the MX-600U power amplifier, is a vintage audio powerhouse, featuring an uncompromising 135 watts per channel. The crimson digital meters add an extra layer of unique visual experience to any listening session.
The power and clarity of the power amp is further complimented by the impressive dynamic control of the matching CX-600U preamplifier. Featuring six inputs, a built-in phono-stage, and a three band EQ—the power of the MX-600U is now at your fingertips!
To sweeten the deal even more, we're throwing in the Yamaha DT-60 Audio Timer. Set it to turn your system on while you're away to record your favorite radio broadcasts.
Share
TECHNICAL SPECIFICATIONS
-
MX-600U Power Amplifier
Power output: 135 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.003%
Damping factor: 70
Input sensitivity: 1.14V
Signal to noise ratio: 123dB
Speaker load impedance: 4Ω to 16Ω
Dimensions: 435 x 170 x 425mm
Weight: 13kg
Year: 1988
-
CX-600U Preamplifier
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.002%
Input sensitivity: 0.1mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 84dB (MC), 94dB (MM), 106dB (line)
Channel separation: 70dB (MM), 60dB (line)
Output: 150mV (line), 1.5V (Pre out), 8.5V (Pre out Max)
Dimensions: 435 x 83 x 298mm
Weight: 4.7kg
-
DT-60 Audio Timer
A convenient addition to any stereo system, the DT-60 lets you preset your system to switch itself on and off for recording broadcasts while your away.
The sleep button turns off the system at a preset time as you fall asleep to music.
- Dimensions: 17-1/8 x 2-13/16 x 5-1/4 inches
- Weight: 3lbs 15oz
